Medium Voltage 220V 1A Driver Chip

EG2031 is a high cost-effective high-power MOS transistor and IGBT transistor gate drive dedicated chip, which integrates logic signal input processing circuit, dead zone control circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output drive circuit. It is specifically designed for the drive circuit in brushless motor controllers. The high-end working voltage can reach 220V, and the low-end VCC power supply voltage range is wide from 11V to 20V, with a static power consumption of about 100uA. The chip has a locking function, with a built-in 250K pull-down resistor in the input channel HIN and a built-in pull-up potential in LIN. The output current capability is IO+/-1/1.5A, and it is packaged in SOP8.

Medium Voltage 220V 1A Driver Chip

EG2032 is a high cost-effective high-power MOS transistor and IGBT transistor gate drive dedicated chip, which integrates logic signal input processing circuit, dead zone control circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output drive circuit. It is specifically designed for the drive circuit in brushless motor controllers. The high-end working voltage can reach 220V, and the low-end VCC power supply voltage range is wide from 9V to 20V, with a static power consumption of about 100uA. The chip has a locking function, with built-in 250K pull-down resistors for input channels HIN and LIN, and an output current capability of IO+/-1/1.5A. It is packaged in SOP8.

Full-Bridge Driver Chip with Overcurrent Protection

It is a dedicated full bridge driver chip with two comparator functions, which integrates logic signal input processing circuit, SD control circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output drive circuit. High end working voltage can reach 600V, low-end VCC power supply voltage range is 10V-20V, low static power consumption, with locking function, output current capability I0+/-0.6A/1.0A, applied in inverter power supply, electric vehicle controller and other fields, using SSOP24 package

Full-Bridge Driver Chip with SD

It is a dedicated full bridge driver chip with two comparator functions, which integrates logic signal input processing circuit, SD control circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output drive circuit. High end working voltage can reach 600V, low-end VCC power supply voltage range is 10V-20V, low static power consumption, with locking function, output current capability I0+/-0.3/0.6A

Full-Bridge Driver Chip

EG2226 is a cost-effective full bridge driver dedicated chip that integrates logic signal input processing circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output driver circuit. The high-end working voltage can reach 600V, and the low-end VCC power supply voltage range is wide from 10V to 20V, with low static power consumption. The chip has a locking function to prevent the output power transistors from conducting simultaneously. The input channels HIN and LIN have built-in 250K pull-down resistors, which keep the upper and lower power MOS transistors in a closed state when the input is suspended. The output current capability is IO+/-0.6/1.0A.

Integrated 600V half bridge drive forward and backward control chip

It is a cost-effective integrated 600V half bridge drive current mode PWM controller, suitable for medium and high power dual tube forward and dual tube flyback power supply solutions. Built in frequency jitter function, with excellent EMI characteristics. Built in comprehensive protection functions: VCC undervoltage protection (UVLO), cycle by cycle current limitation, overload protection, soft start, etc

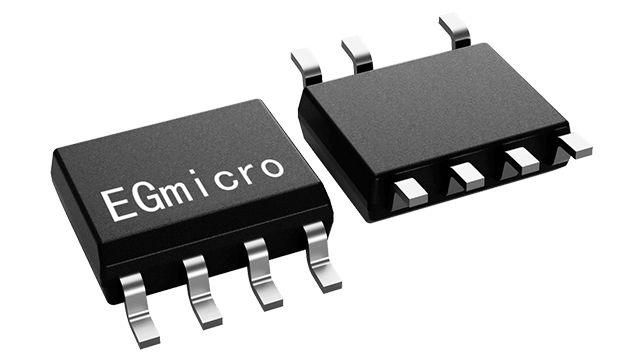

Built in 30V80A power transistor step-down synchronous rectification DCDC power supply chip

It is a wide voltage range step-down synchronous rectification DC-DC power management chip, which integrates 30V 80A power transistor, enable switch control, reference power supply, error amplifier, overheating protection, current limiting protection, short circuit protection and other functions. It is very suitable for high current and small volume step-down output. EG11732 comes with enable control, which can easily turn off the delay function and has a high cost-effectiveness.

Zero power enable built-in 100V3A MOS transistor step-down DCDC power chip

It is a wide voltage range step-down DC-DC power management chip that integrates enabling switch control, reference power supply, error amplifier, overheat protection, current limiting protection, short circuit protection, and other functions, suitable for wide voltage input step-down use. Equipped with zero power enable control function, it can save peripheral devices and is suitable for battery applications, with high cost-effectiveness

Built in 100V 30A MOS tube step-down synchronous rectification DCDC power supply chip

It is a wide voltage range step-down synchronous rectification DC-DC power management chip, which integrates 100V high current power transistor, enable switch control, reference power supply, error amplifier, overheating protection, current limiting protection, short circuit protection and other functions, suitable for wide voltage input step-down high current output use. Equipped with enable control, it can easily turn off the delay function and has a high cost-effectiveness
