High speed dual channel rail to rail operational amplifier chip

A dual channel operational amplifier with low operating current, single power supply, 4 MHz bandwidth, and high-speed rail to rail input and output. Easy to implement ASIC buffering in a single power supply system, maintaining high gain at lower power supply voltages, suitable for active filters and gain stages, with extremely low input bias current, suitable for battery powered applications, rated temperature range of -40 ℃ to+125 ℃, extended industrial temperature range, available in 8-pin SOIC surface mount packaging.

Low power dual channel rail to rail operational amplifier chip

Low operating current, single power supply, 1 MHz bandwidth, and dual channel operational amplifier with rail to rail input and output. Easy to implement ASIC buffering in a single power supply system, maintaining high gain at lower power supply voltages, suitable for active filters and gain stages, with extremely low input bias current, suitable for battery powered applications, rated temperature range of -40 ℃ to+125 ℃, extended industrial temperature range, available in 8-pin SOIC surface mount packaging.

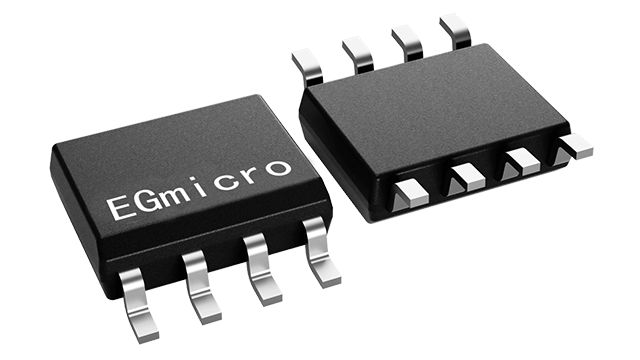

High speed CMOS rail to rail operational amplifier chip

It is a dual channel operational amplifier with low operating current, single power supply (2.5V to 5.5V), 6MHz bandwidth, and high-speed rail to rail input and output. Rail to rail input and output facilitate ASIC buffering in a single power supply system, maintaining high gain at lower power supply voltages, and can be used for active filters and gain stages. Featuring an extremely low input bias current (1pA), it can be applied to high input impedance scenarios such as integrators and photodiode amplifiers. The power supply current of each amplifier is only 430uA, suitable for battery power supply. The rated temperature range is -40 ℃ to+125 ℃, expanding the industrial temperature range. The packaging form is SOP8, lead-free and halogen-free, and meets ROHS standards

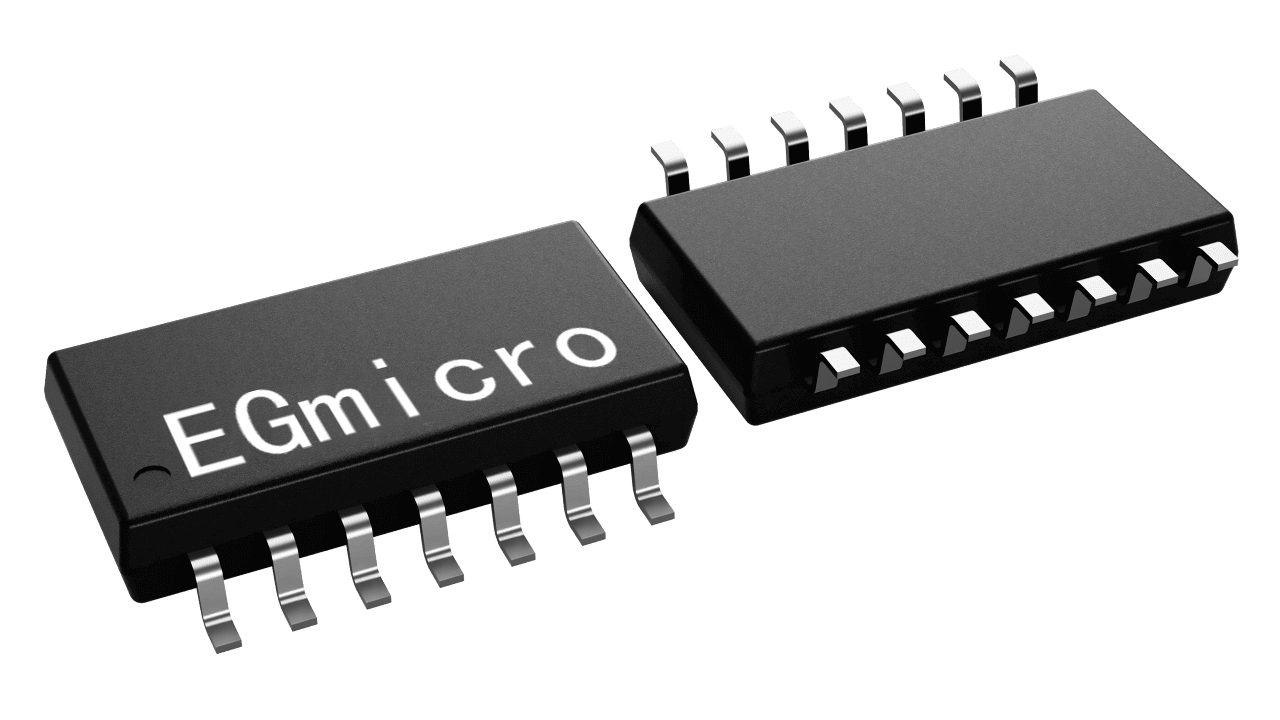

Four channel operational amplifier chip

Internally, it includes four independent high gain voltage operational amplifiers with built-in frequency compensation. Suitable for single or dual power supply operation mode within a wide power supply voltage range, the power leakage current is independent of the power supply voltage, and can be applied in fields such as battery chargers, cordless phones, switch power supplies, etc. The packaging forms include DIP-14 SOP - 14。

Dual channel operational amplifier chip

Composed of two independent high gain operational amplifiers, it can operate with a single or dual power supply. The power consumption current is independent of the power supply voltage, and its application range includes audio amplifiers, industrial controls, DC gain components, and all conventional operational amplifier circuits. It is packaged in DIP8 or SOP8 form.
