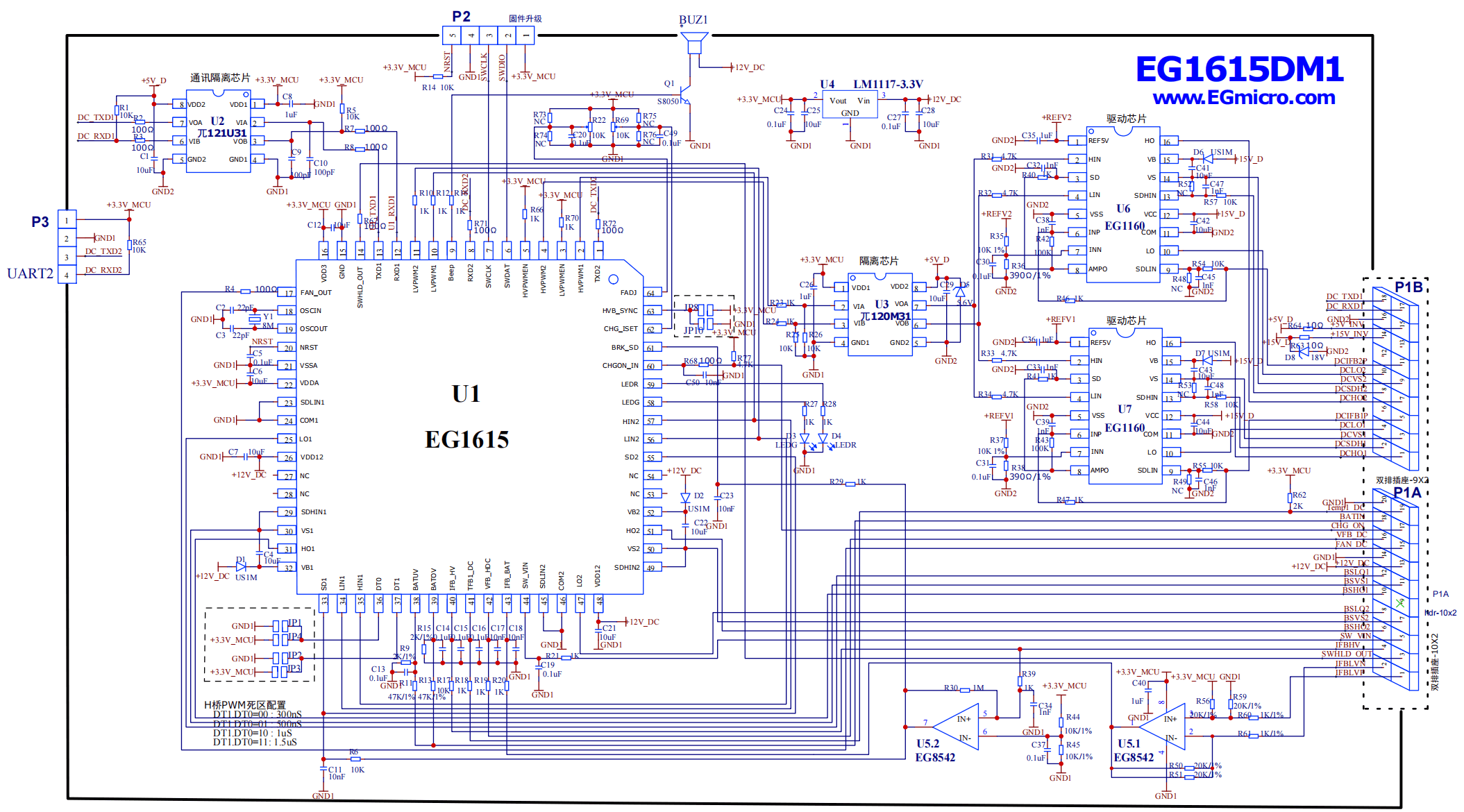

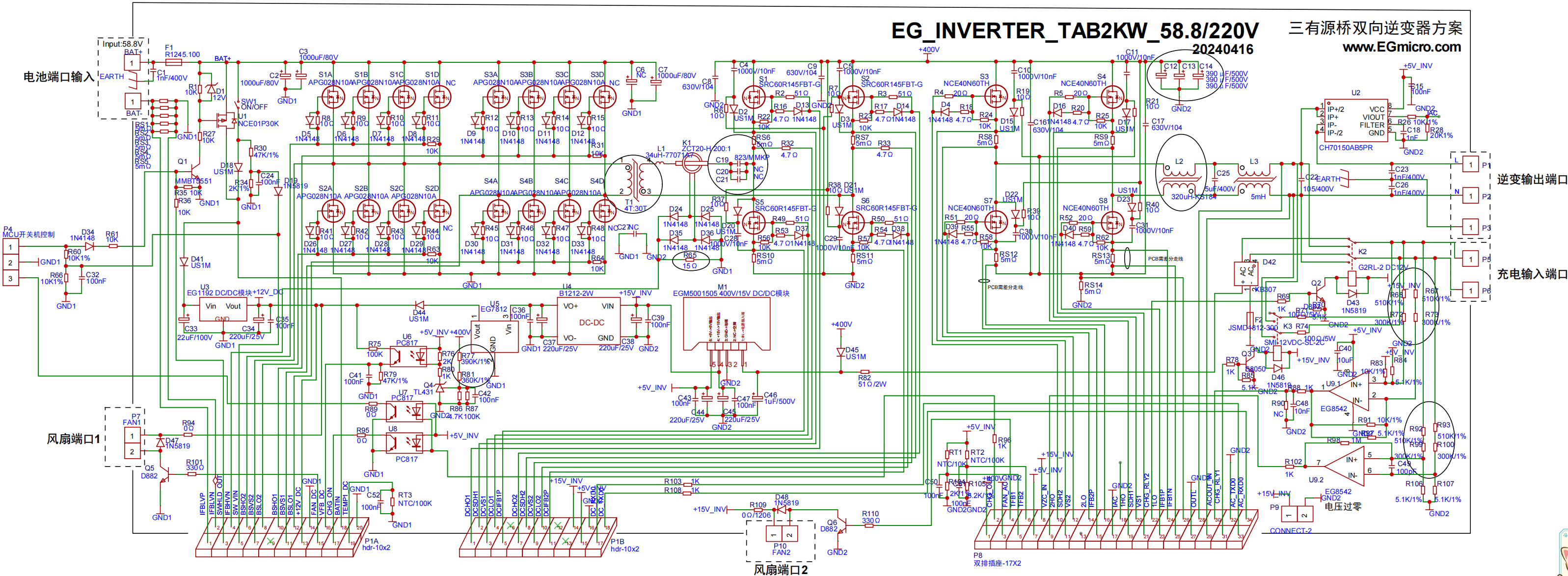

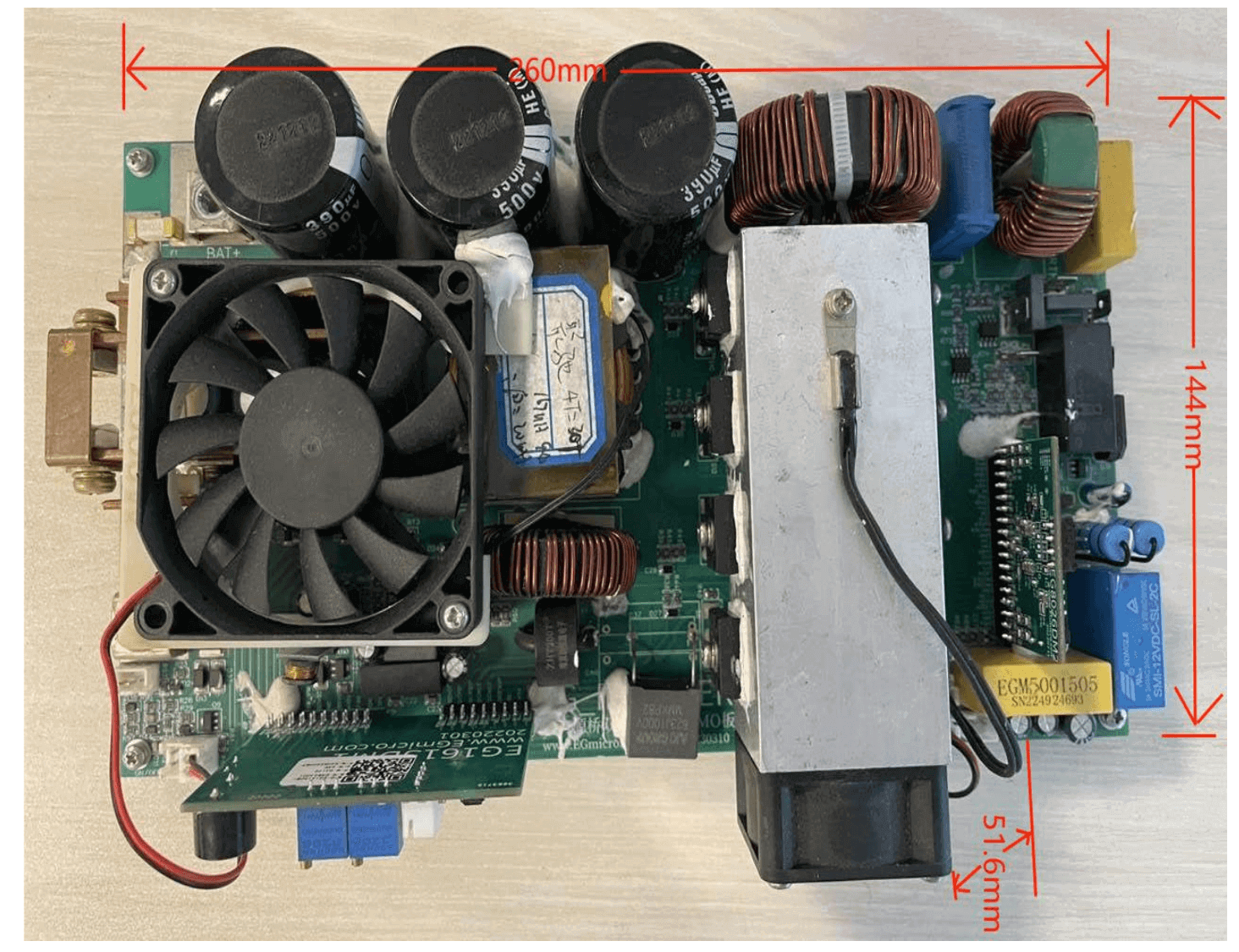

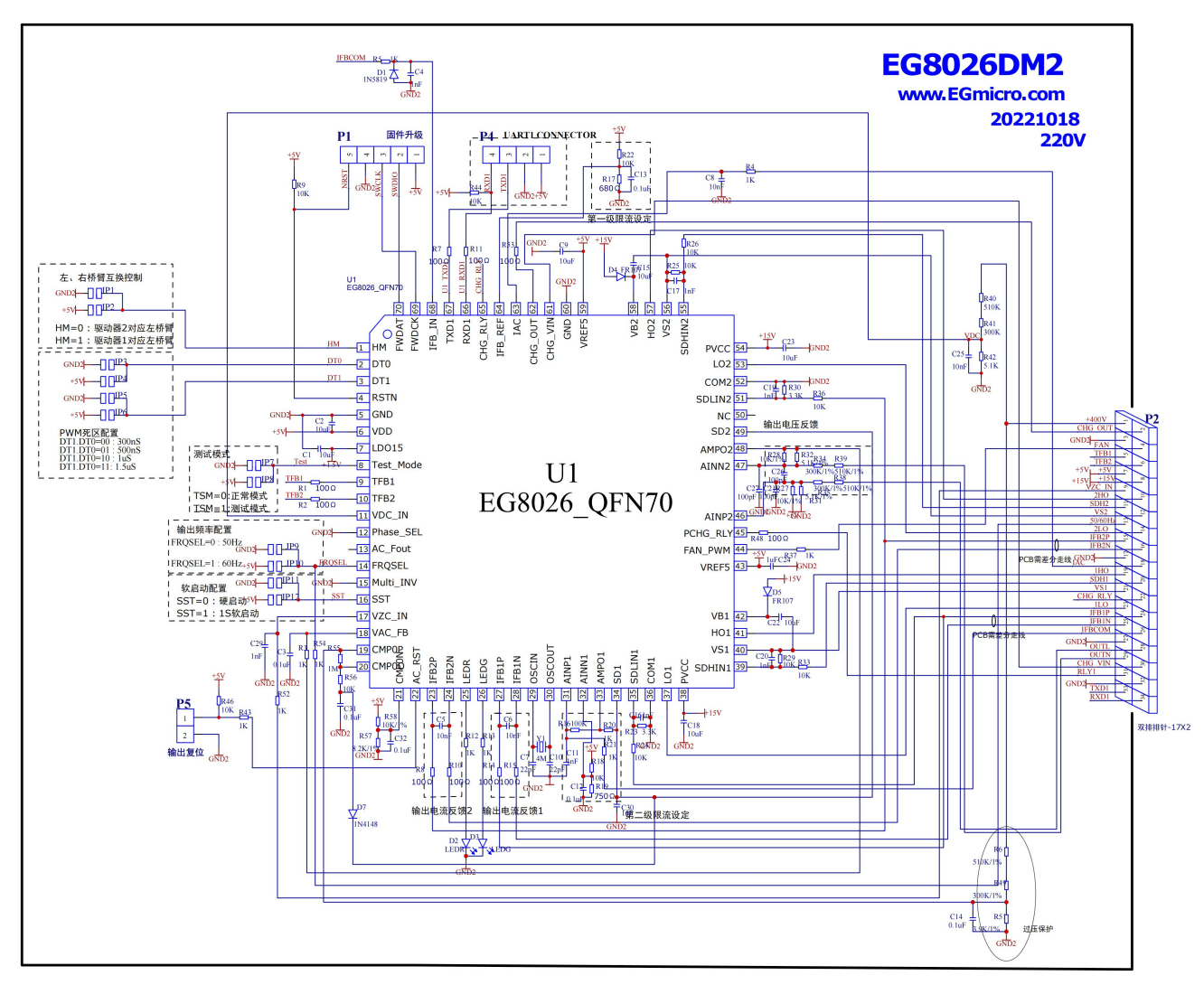

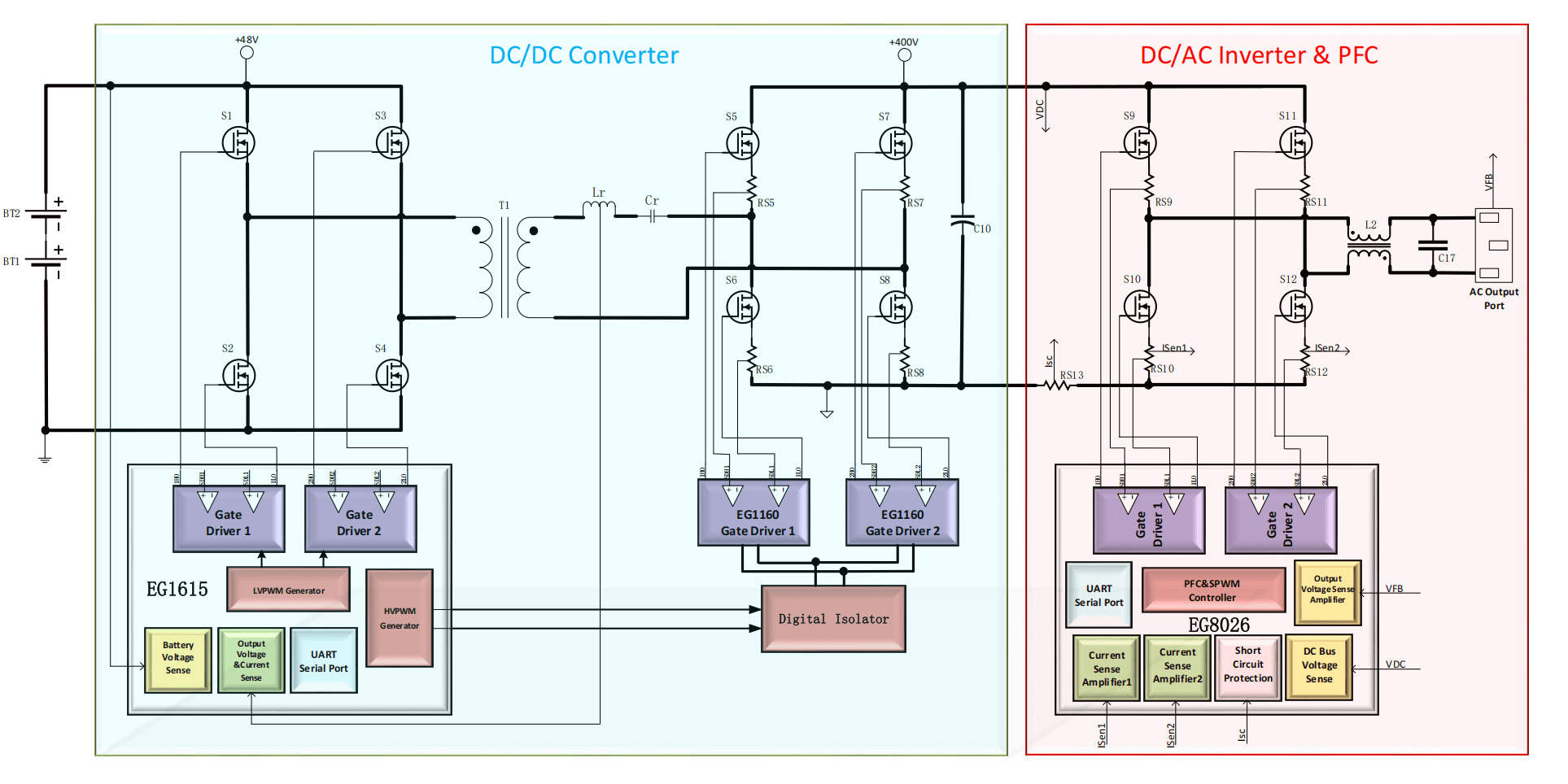

The EG_INVERTER_TAB2000W bidirectional inverter is designed based on the dedicated EG1615+EG8026 chip for a demo solution. When operating as an inverter, it has a rated power of 2000 watts and a peak output power of 3500 watts, with an output voltage of 220V±10%, output frequency of 50Hz±0.1Hz, and a rated output current of 9.1 amps; when functioning as a charger, it has a default rated power of about 1000 watts, with a maximum power settable up to 2KW by the charging current limiter, maximum constant current of 45A, and a constant voltage of 58.8V.
