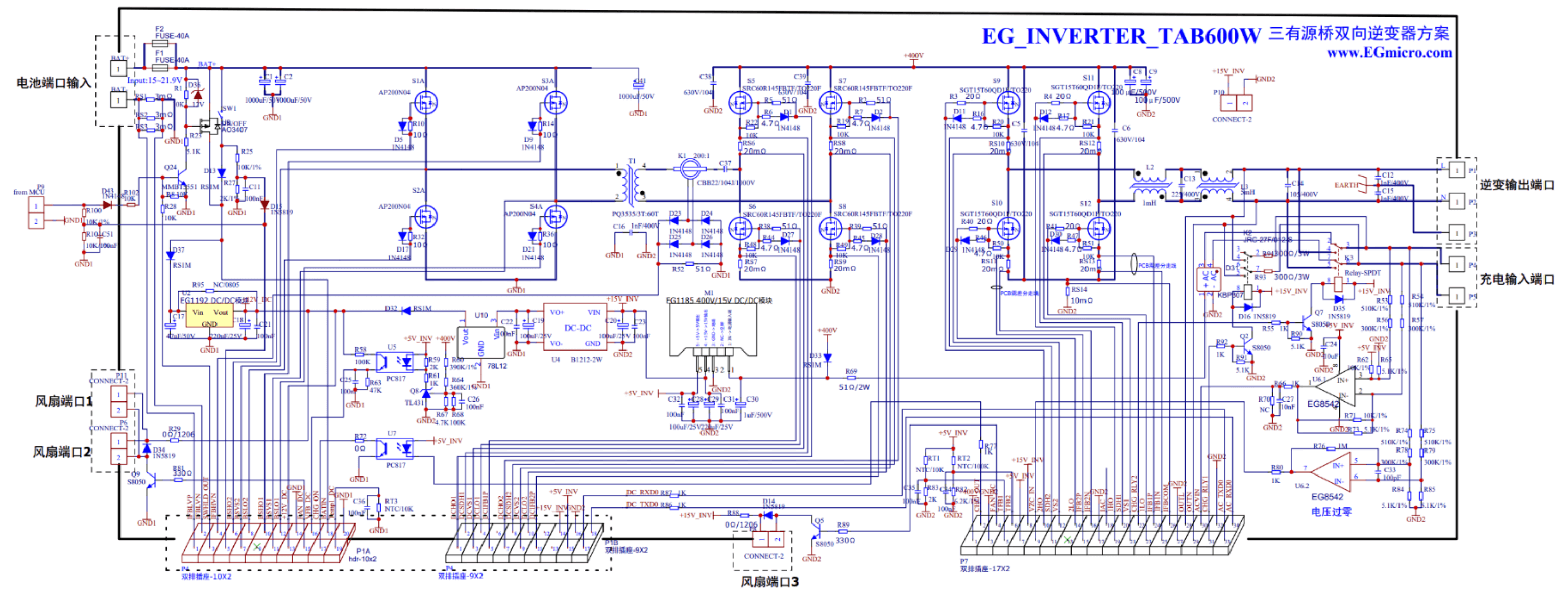

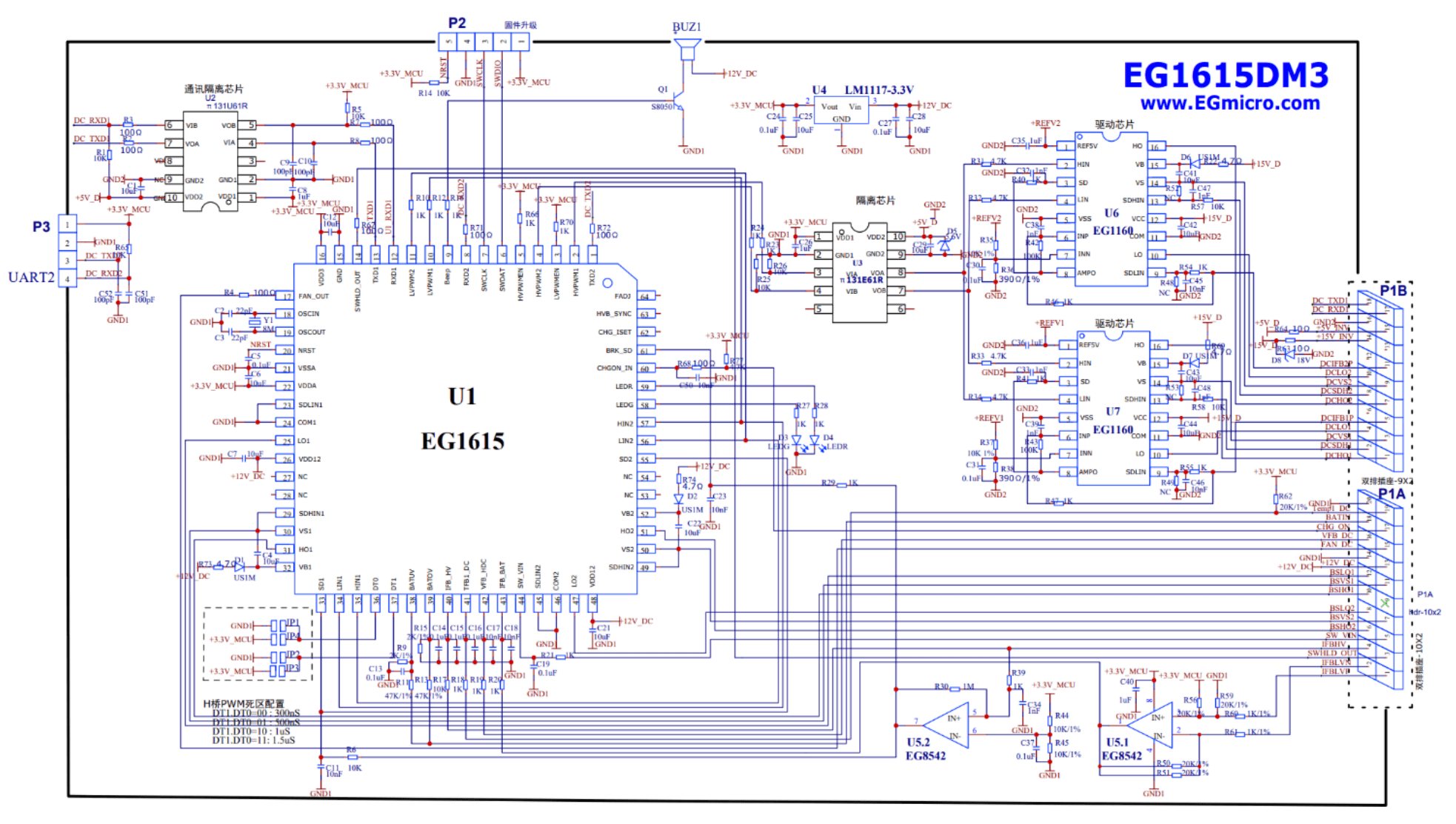

The EG_INVERTER_TAB600W bidirectional inverter is designed based on the dedicated EG1615+EG8026 chip for a demo solution. When operating as an inverter, it has a rated power of 600 watts and a peak power of 1000 watts, with an output voltage of 220V±10%, output frequency of 50Hz±0.1Hz, and a rated output current of 2.7 amps; when functioning as a charger, it has a default rated power of about 400 watts, constant current of 20A, and a constant voltage of 21.9V.
