Product Details
operating voltage
2.7-5.5V
static current
200uA
maximum offset voltage
6mV
bandwidth
4M
package
SOP8
- Single power supply, 2.7V to 5.5V
- Low power supply current, 200 μ A per amplifier
- Low input current, 4mA
- Wide bandwidth, 4MHz
- Stable unit gain
- Track to track input and output
- ASIC input or output amplifier
- Sensor interface
- Piezoelectric sensor amplifier
- Medical equipment
- Mobile communication
- Audio output
- portable system

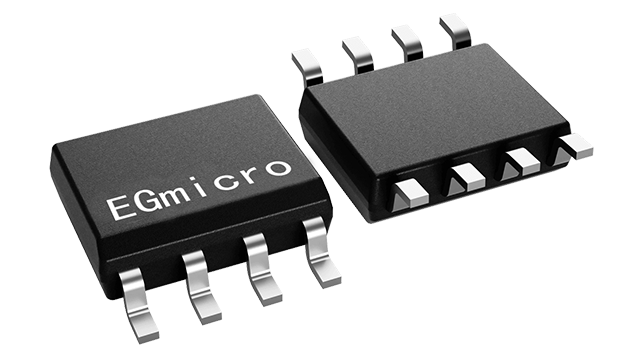

A dual channel operational amplifier with low operating current, single power supply, 4 MHz bandwidth, and high-speed rail to rail input and output. Easy to implement ASIC buffering in a single power supply system, maintaining high gain at lower power supply voltages, suitable for active filters and gain stages, with extremely low input bias current, suitable for battery powered applications, rated temperature range of -40 ℃ to+125 ℃, extended industrial temperature range, available in 8-pin SOIC surface mount packaging.
