Product Details
operating voltage
14-36V
static current
3.4mA
maximum output current
100mA
package
SOT-89/TO-92
- The maximum output current is 100mA
- Low noise
- High ripple suppression ratio
- The output voltage is 12V
- Thermal overload protection
- Output short-circuit current limit
- Safe working area protection for output transistors
- controller
- DVD-ROM，CD-ROM
- Linear voltage regulator source
- Sound card and computer motherboard

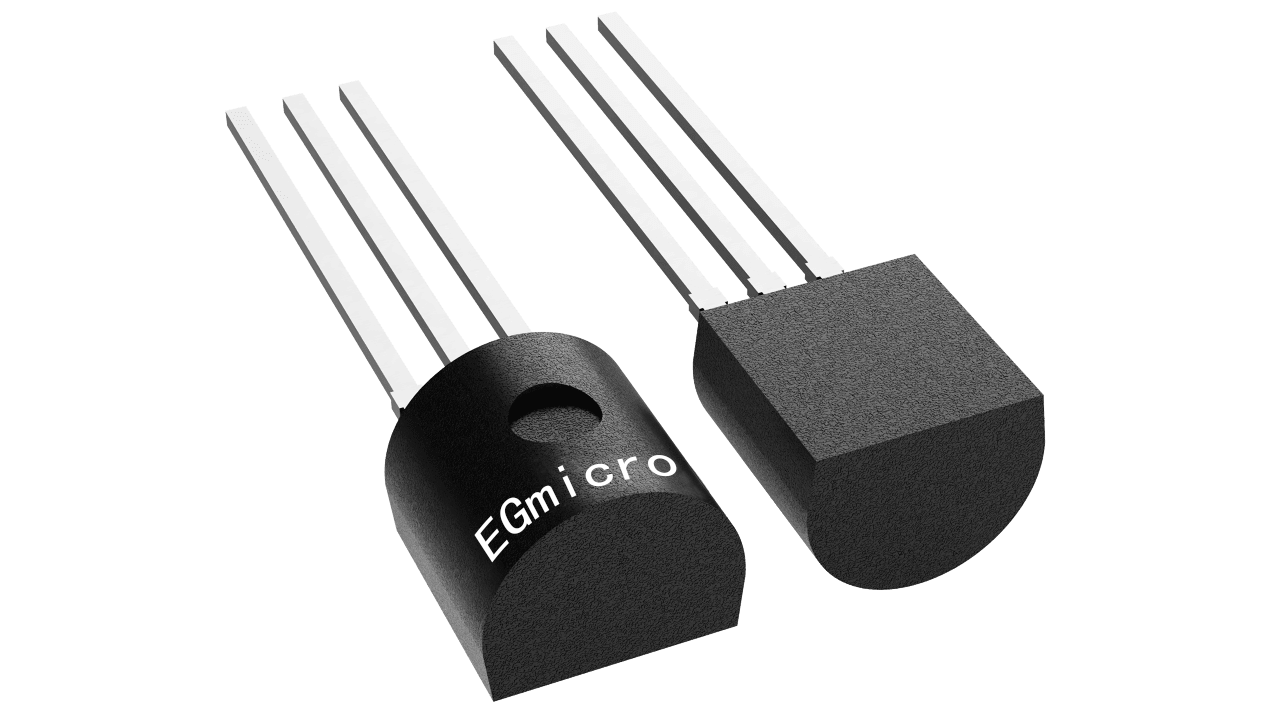

The EG78L12 series three-way power supply voltage regulator is a single-chip bipolar linear integrated circuit with a series of fixed voltage outputs, suitable for occasions requiring 100mA power supply. It is packaged in TO-92 and SOT-89 forms
