Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
100
Low end power supply (V)
5-20
input logic
IN,`SD,DT
Output current (A)
1.6/2.5
Low end power supply undervoltage protection (V)
4.7/4.3
High end power supply undervoltage protection (V)
not have
Blocking protection
have
enable
not have
Open delay LO-HO
620/620
Extension time LO-HO
250/250
Rise time LO-HO
100/100
Descent time LO-HO
50/50
Dead time (nS)
可调
thoroughfare
2
package
MSOP10
- High-end floating bootstrap power supply design, with a withstand voltage of up to 100V
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- VCC power supply with undervoltage protection
- VCC voltage range of 5V - 20V
- output current capability of IO+/– 1.8A/2.5A
- adjustable dead-time
- SD input channel low-level effective, disabling HO and LO outputs
- minimal external components
- package form: MSOP10
- lead-free and halogen-free, compliant with RHOS standards.
- E-cigarette
- Wireless charging driver
- DC - DC power supply
- Brushless motor driver

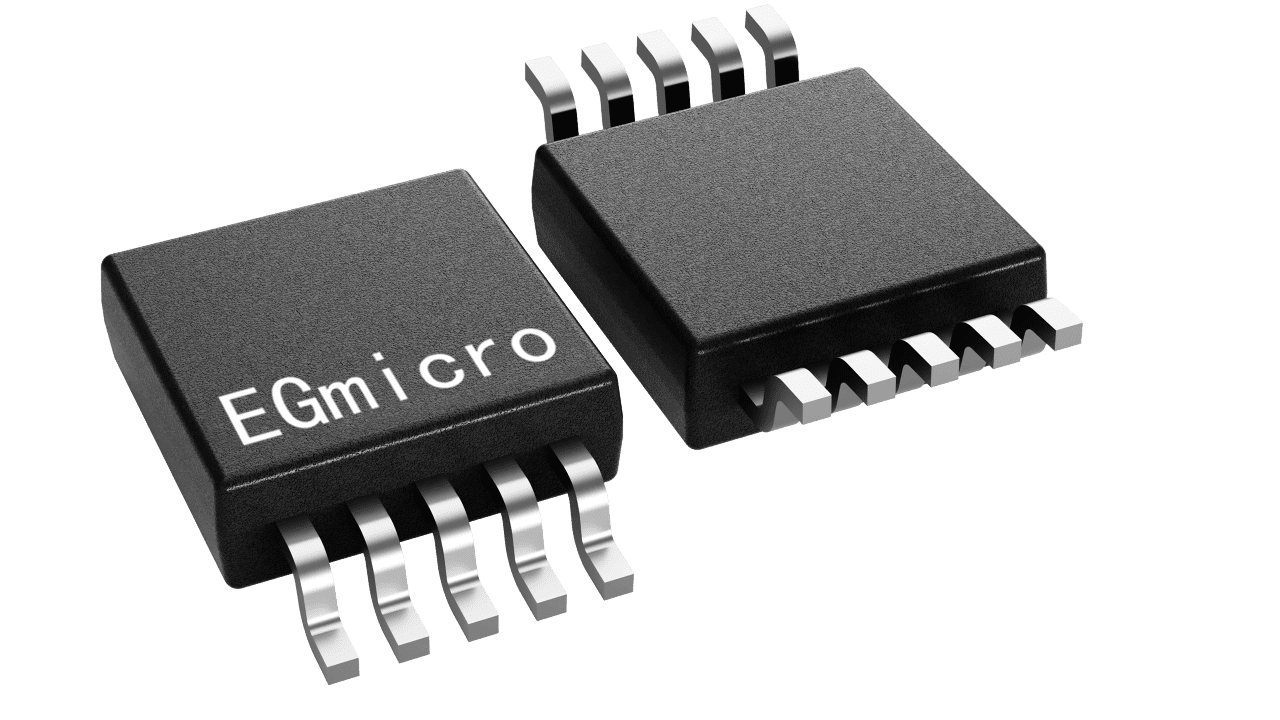

EG5620 is a 100V gate driver with SD function and 5-20V Vcc. Features logic processing, adjustable dead-time and 1.8/2.5A output. Includes 200K pull-down on IN/SD to disable MOSFETs when floating, in MSOP10.
