Product Details
Drive type
Low - Side Half - Bridge
Suspended power supply (V)
-
Low end power supply (V)
4-20
input logic
IN
Output current (A)
2.0/2.5
Low end power supply undervoltage protection (V)
not have
High end power supply undervoltage protection (V)
not have
Blocking protection
not have
enable
not have
Open delay LO-HO
80
Extension time LO-HO
60
Rise time LO-HO
40
Descent time LO-HO
20
Dead time (nS)
not have
thoroughfare
1
package
SOT23-5
- VCC voltage range of 4V - 20V
- output current capability of IO+/– 2A/2A
- short input-output delay
- output remains low when input pin is floating
- minimal external components
- quiescent current less than 1uA, very suitable for battery applications
- package form: SOT23 - 5
- lead-free and environmentally friendly, compliant with ROHS report.
- Switch-mode power supply for solar and uninterruptible power supply
- DC - DC converter
- Drive transformer
- Digital power gate driver

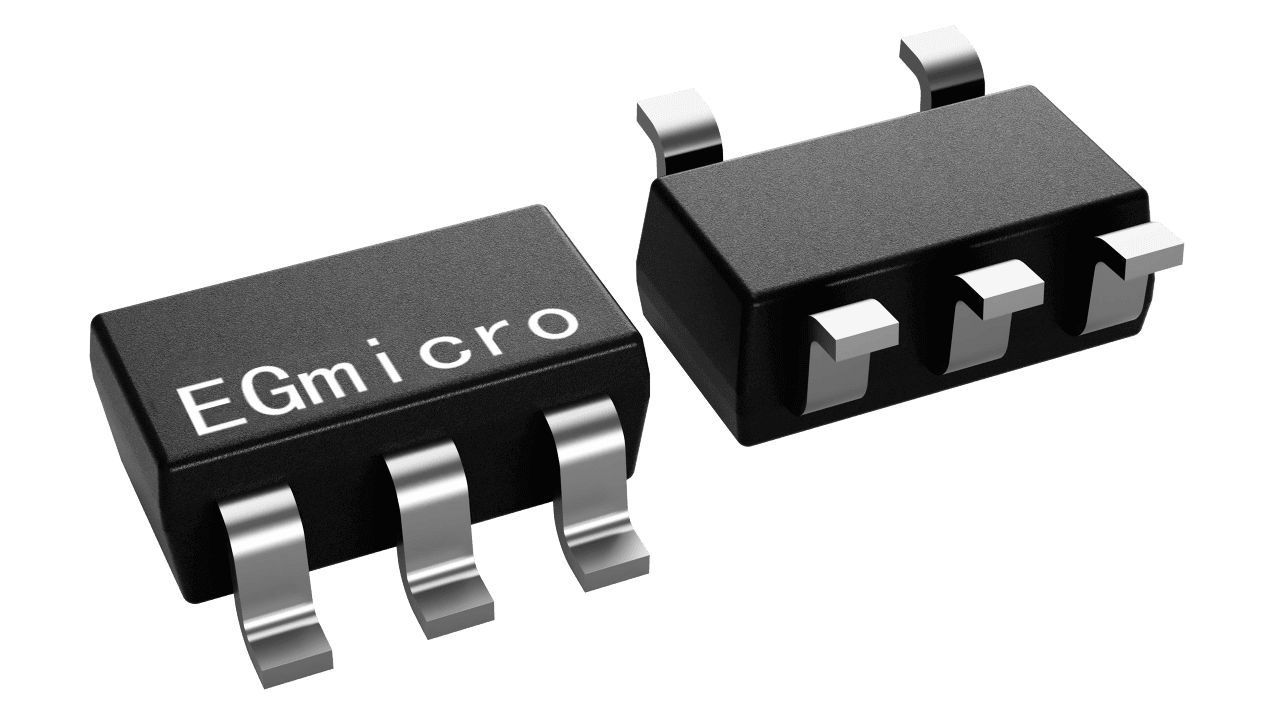

EG44273 single channel high-speed low side gate driver can effectively drive metal oxide semiconductor field-effect transistors and insulated gate bipolar transistor power switches. Provide high peak pull/sink current pulses for capacitive loads, while also providing rail to rail driving capability and short propagation delay. The power supply voltage range is wide from 4V to 20V, and the static power consumption is less than 1uA. When VCC=12V, it can provide a peak of 2A for symmetrical drive current driving capability, using SOT23-5 packaging.
