Product Details
operating voltage
4-35V
static current
5.5mA
output maximum current
40mA
package
TO-92S
- Wide range of power supply voltage: 4V~35V
- High sensitivity
- Equipped with reverse power supply voltage protection
- Open collector output
- Maximum output current capacity: 40mA
- Wide operating frequency range: 0-100KHz
- Working temperature range: -40 ℃~150 ℃
- Brushless DC motor
- Current sensor
- Position control
- Safety alarm device
- Contactless switch
- Speed detection

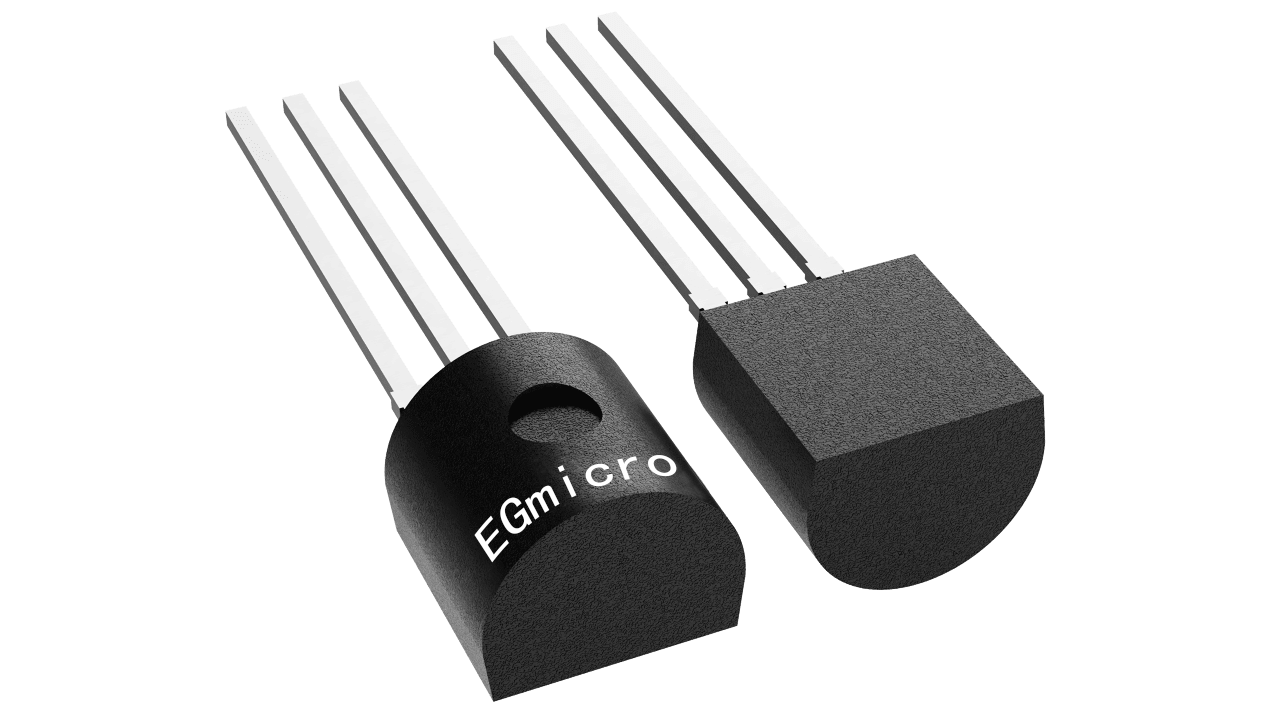

Bipolar latch type Hall effect sensor chip, integrated with multiple circuits, wide power supply voltage range, high sensitivity, with reverse power protection, open collector output, wide operating frequency range, wide temperature range, suitable for brushless DC motors, position control and other fields, using TO-92S package
