Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
-
Low end power supply (V)
6-36
input logic
HIN,LIN
Output current (A)
0.02/0.22
Low end power supply undervoltage protection (V)
5.8/5.2
High end power supply undervoltage protection (V)
not have
Blocking protection
have
enable
not have
Open delay LO-HO
150/120
Extension time LO-HO
45/70
Rise time LO-HO
350/80
Descent time LO-HO
100/850
Dead time (nS)
90
thoroughfare
6
package
SOP16
- Three-phase P/N MOSFET gate driver
- input voltage range of 6V - 36V
- compatible with 3V - 30V input voltage
- with VCC undervoltage protection
- built-in 3.3V/50mA output LDO
- built-in dead-time control circuit
- built-in latch function
- LIN1/2/3 input channels high-level effective, controlling LO output
- HIN1/2/3 input channels high-level effective, controlling HO output
- package form: SOP16.
- Vacuum cleaner
- Fan
- Inverter pump controller
- Motor driver
- Power supply
- Muscle stimulator

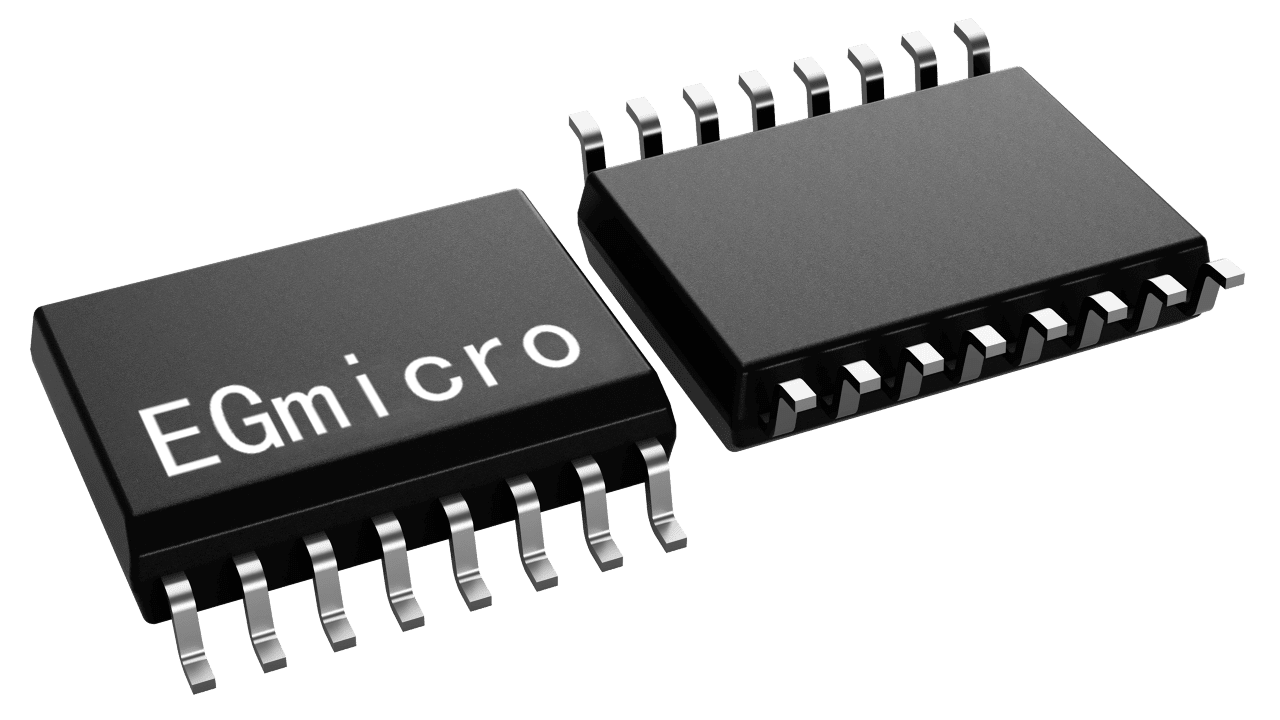

EG3032 is a cost-effective three-phase PMOS and NMOS transistor gate drive dedicated chip, which integrates LDO, dead zone control circuit, undervoltage shutdown circuit, lockout circuit, and output drive circuit. It is used for motor controllers and power supply drive circuits. The power supply voltage range is 6V-36V, and the static power consumption is less than 1mA. This chip integrates a 3.3V output LDO and can supply power to external MCU and other devices. When the input voltage exceeds 12V, in order to better match the P/N MOS transistor, the highest output voltage of LO is 12V, and the lowest output voltage of HO is VCC minus 12V. LO output current capability IO+/-0.037/0.11A, HO output current capability IO+/-0.23/0.02A.
