Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
200
Low end power supply (V)
5-20
input logic
HIN,`LIN
Output current (A)
0.6/1
Low end power supply undervoltage protection (V)
4.3/4.2
High end power supply undervoltage protection (V)
not have
Blocking protection
have
enable
not have
Open delay LO-HO
850/850
Extension time LO-HO
100/100
Rise time LO-HO
40/40
Descent time LO-HO
20/20
Dead time (nS)
750
thoroughfare
2
package
SOP8
- High-end floating bootstrap power supply design, with a withstand voltage of up to 200V
- low-end VCC power supply voltage range of 4.5 - 20V
- compatible with 3V - 20V input voltage
- built-in dead-time of 750nS
- with VCC undervoltage protection
- output current capability of IO+/– 0.6A/1A
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel low-level effective, controlling low-end LO output
- minimal external components
- package form: SOP8
- lead-free and halogen-free, compliant with ROHS standards.
- Reversible speed-controlled DC motor
- Inverter pump controller
- 200V buck switching power supply
- LED dimming
- Brushless motor driver
- Electric vehicle controller

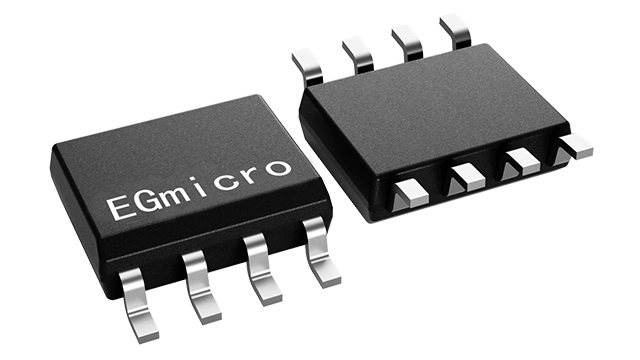

EG3023S is a 200V gate driver with 4.5-20V Vcc and <100μA standby. Features logic processing, dead-time control, UVLO, interlock and 0.6/1A output. Includes 200K pull-down (HIN) and pull-up (LIN) to disable MOSFETs when floating, in SOP8.
