Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
60
Low end power supply (V)
4.5-30
input logic
HIN,`LIN
Output current (A)
0.8/1.0
Low end power supply undervoltage protection (V)
not have
High end power supply undervoltage protection (V)
not have
Blocking protection
have
enable
not have
Open delay LO-HO
500/300
Extension time LO-HO
100/400
Rise time LO-HO
400/400
Descent time LO-HO
200/200
Dead time (nS)
120
thoroughfare
2
package
SOP8
- High-end floating bootstrap power supply design, with a withstand voltage of up to 80V
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- half-bridge Darlington output structure with 1A high current gate drive capability
- specifically designed for gate drive of N-channel MOSFETs and IGBTs in brushless motors
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel low-level effective, controlling low-end LO output
- minimal external components
- low quiescent current: 4.5mA
- package form: SOP - 8.
- Electric motorcycle controller
- Electric bicycle controller
- 80V buck switching power supply
- Inverter pump controller
- Brushless motor driver
- High-voltage Class - D power amplifier

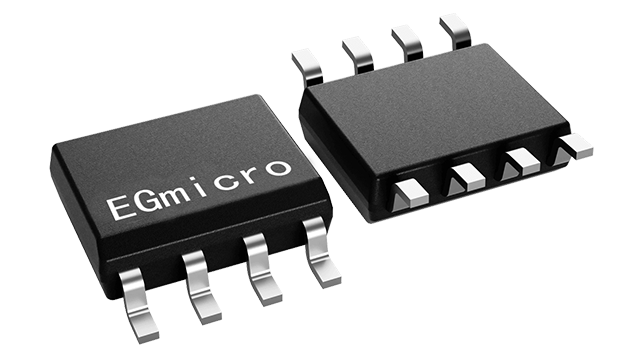

EG3013S is an 80V half-bridge Darlington driver with 4.5-30V Vcc and 4.5mA standby. Features logic processing, dead-time control, interlock. Includes 15K pull-down (HIN) and 5V pull-up (LIN) to disable MOSFETs when floating, in SOP8.
