Product Details
operating voltage
3.5-20V
static current
16mA
output maximum current
-
package
TO-94
- Single chip integration, small size, high reliability
- Wide voltage operating range: 3.5V to 20V
- Built in Hall sensor
- 400mA average current output capability
- Open collector, complementary output
- Built in voltage reversal protection diode

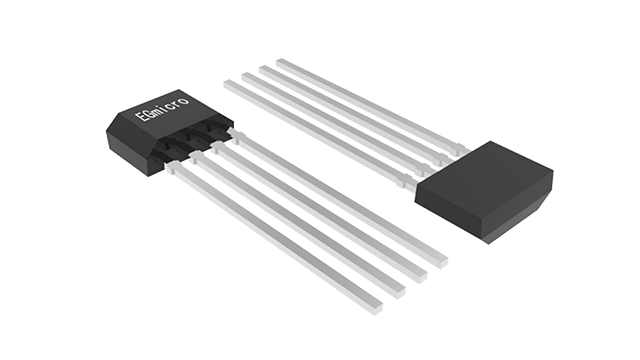

- Adopting a smaller TO-94 package
- Dual coil brushless DC fan
- Dual coil brushless DC motor
- Rotary counter
- Speed
A chip that integrates Hall sensors and collector open complementary output drivers, used for two-phase brushless DC fans. It has a wide voltage operating range, built-in protective diodes, specific output driving modes, and magneto electric parameters. It is suitable for devices such as dual coil brushless DC fans and adopts TO-94 packaging
