Product Details
Drive type
Low - Side Half - Bridge
Suspended power supply (V)
-
Low end power supply (V)
4-20
input logic
IN
Output current (A)
4.0/5.0
Low end power supply undervoltage protection (V)
not have
High end power supply undervoltage protection (V)
not have
Blocking protection
not have
enable
not have
Open delay LO-HO
80
Extension time LO-HO
60
Rise time LO-HO
40
Descent time LO-HO
20
Dead time (nS)
not have
thoroughfare
1

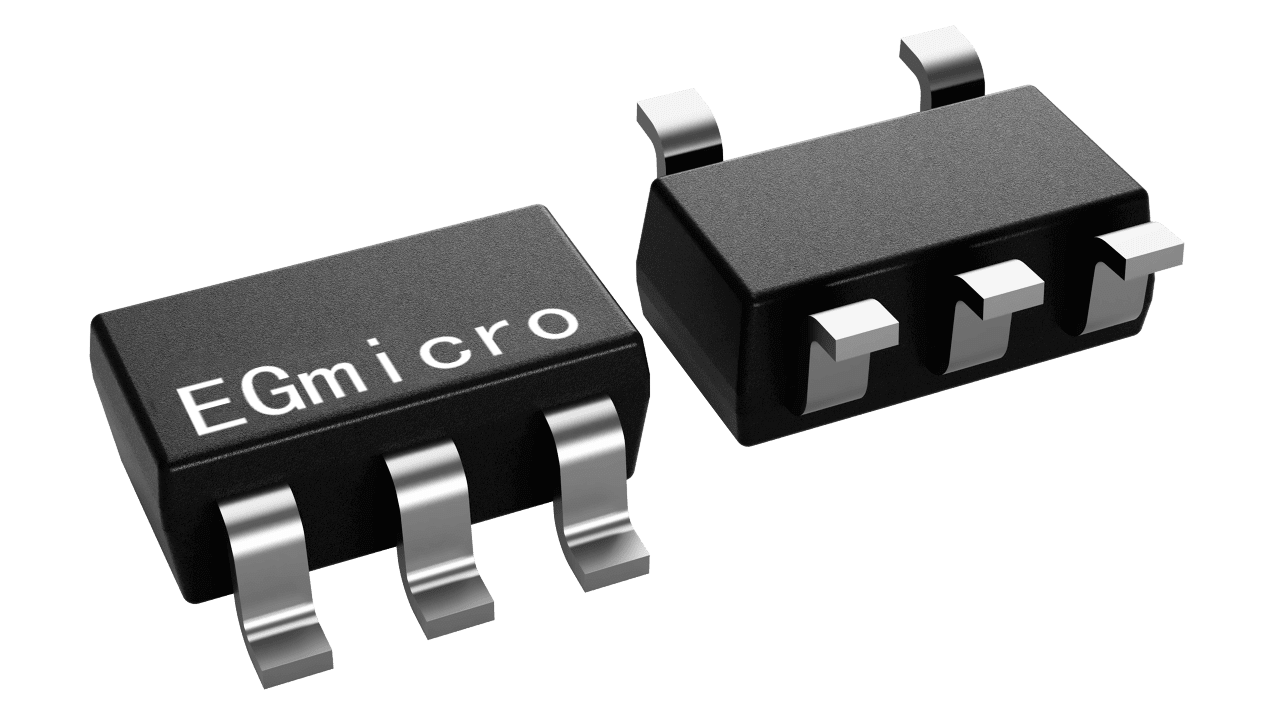

package
SOT23-5
- Low-cost gate driver device provides a high-quality alternative to NPN and PNP discrete solutions
- VDD voltage range of 4V - 20V
- output current capability of IO+/– 4A/4A
- short input-output delay
- output remains low when input pin is floating
- minimal external components
- low quiescent current, very suitable for battery applications
- package form: SOT23 - 5
- lead-free and environmentally friendly, compliant with ROHS report.
- Switch mode power supply
- DC-DC converter
- Digital power grid driver device solar, uninterruptible power supply (UPS)
- Drive transformer
EG27517 single channel high-speed low side gate driver can effectively drive metal oxide semiconductor field-effect transistors and insulated gate bipolar transistor power switches. Provide high peak pulling/charging current pulses for capacitive loads, while also providing rail to rail driving capability and short propagation delay. The power supply voltage range is wide from 4V to 20V, with low static power consumption. It features a dual input design (with the option to choose between inverting IN - or inverting IN+driver configuration), and can provide peak 4A fill/pull (symmetrical drive) current driving capability when VDD=12V. It is packaged in SOT23-5
