Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
HIN,LIN
Output current (A)
0.6/1.0
Low end power supply undervoltage protection (V)
8.4/7.9
High end power supply undervoltage protection (V)
7.8/7.3
Blocking protection
have
enable
not have
Open delay LO-HO
220/220
Extension time LO-HO
200/200
Rise time LO-HO
350/350
Descent time LO-HO
140/140
Dead time (nS)
-
thoroughfare
4
package
SSOP16
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- undervoltage shutdown output on VCC and VB
- low-end VCC voltage range of 10V - 25V
- output current capability of IO+/– 0.6A/1.0A
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel high-level effective, controlling low-end LO output
- minimal external components
- package form: SSOP16
- lead-free and halogen-free, compliant with ROHS standards.
- Inverter power supply
- Electric vehicle controller
- Brushless motor driver
- Inverter pump controller
- Switching power supply

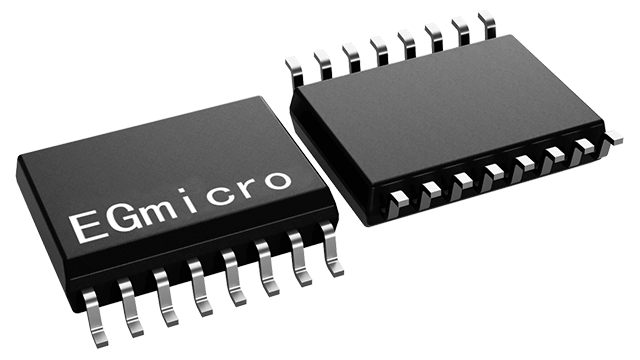

EG2226 is a cost-effective full bridge driver dedicated chip that integrates logic signal input processing circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output driver circuit. The high-end working voltage can reach 600V, and the low-end VCC power supply voltage range is wide from 10V to 20V, with low static power consumption. The chip has a locking function to prevent the output power transistors from conducting simultaneously. The input channels HIN and LIN have built-in 250K pull-down resistors, which keep the upper and lower power MOS transistors in a closed state when the input is suspended. The output current capability is IO+/-0.6/1.0A.
