Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
HIN,LIN
Output current (A)
2.5/3
Low end power supply undervoltage protection (V)
8.8/8.2
High end power supply undervoltage protection (V)
8.6/8.1
Blocking protection
not have
enable
not have
Open delay LO-HO
290/290
Extension time LO-HO
260/260
Rise time LO-HO
120/120
Descent time LO-HO
80/80
Dead time (nS)
-
thoroughfare
2
package
SOP14
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- low-end VCC voltage range of 10V - 20V
- output current capability of IO+/– 2.5A/3A
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel high-level effective, controlling low-end LO output
- input signals are not mutually latched
- minimal external components
- package form: SOP14
- lead-free and halogen-free, compliant with ROHS standards.
- Mobile power supply high-voltage fast charge switching power supply
- Electric vehicle controller
- Inverter pump controller
- 600V buck switching power supply
- Brushless motor driver
- High-voltage Class - D power amplifier

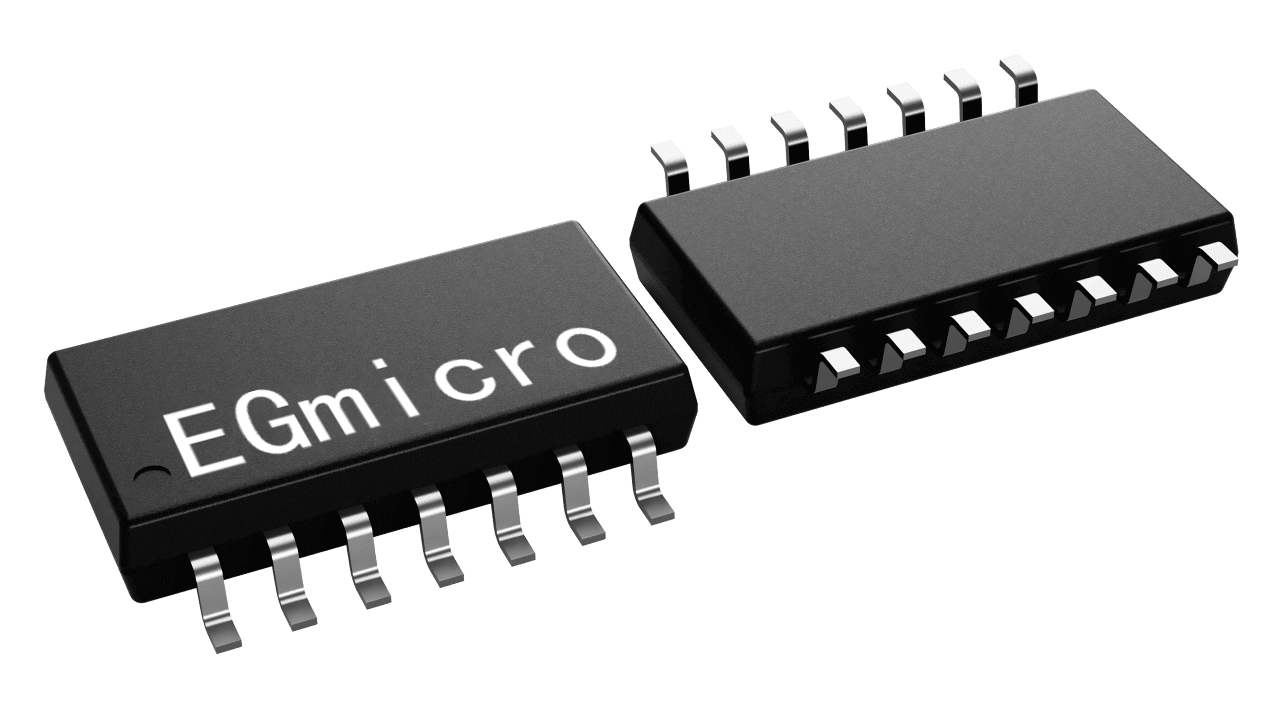

EG21814 is an economical high-power MOSFET/IGBT driver with logic processing, level shifting and output circuits. For brushless motor controllers, it handles 600V high-side voltage and 10V-20V Vcc with 200μA standby current. Features 200K pull-down resistors on HIN/LIN to disable MOSFETs when inputs float. Output capability: IO+/- 2.5/3A in SOP14 package.
