Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
`HIN,`LIN
Output current (A)
0.2/0.35
Low end power supply undervoltage protection (V)
8.9/8.2
High end power supply undervoltage protection (V)
8.9/8.2
Blocking protection
have
enable
have
Open delay LO-HO
450/450
Extension time LO-HO
380/380
Rise time LO-HO
125/125
Descent time LO-HO
50/50
Dead time (nS)
290
thoroughfare
6
package
SOP28
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- compatible with 5V or 3.3V input voltage
- output current capability of +0.2A/-0.35A
- undervoltage protection
- enable control
- input and output are inverted
- externally settable clear time
- high and low-end channels matched
- overcurrent protection to shut down six-channel outputs
- integrated with three independent half-bridge drivers
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- package form: SOP28
- lead-free and halogen-free, compliant with ROHS standards.
- Three-phase motor drive
- DC - AC inverter
- Switching power supply
- Air conditioner, refrigerator, washing machine

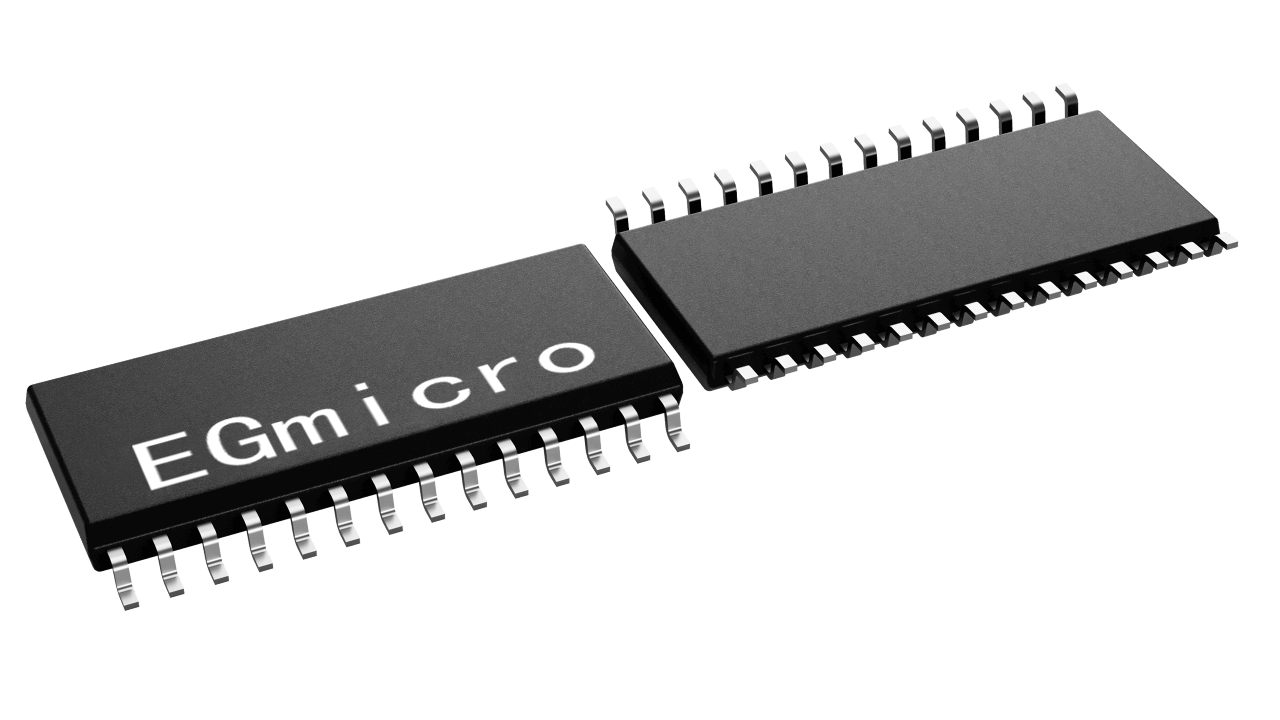

EG2136S is a three-phase gate drive circuit used for high-voltage and high-speed power devices such as N-type power MOSFETs and IGBTs. It mainly consists of three independent half bridge drive circuits, which have functions such as undervoltage protection, input noise filtering, dead time control, and overcurrent protection. It is suitable for 5V or 3.3V input voltage and has an output current capability of+0.2A/-0.35A. It is applied to three-phase motor drive and adopts SOP28L packaging
