Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
300
Low end power supply (V)
4.5-20
input logic
HIN,`LIN
Output current (A)
1.2/1.4
Low end power supply undervoltage protection (V)
not have
High end power supply undervoltage protection (V)
not have
Blocking protection
have
enable
not have
Open delay LO-HO
300/300
Extension time LO-HO
100/100
Rise time LO-HO
25/25
Descent time LO-HO
20/20
Dead time (nS)
100
thoroughfare
6
package
TSSOP20
- High-end floating bootstrap power supply design, with a withstand voltage of up to 300V
- integrated with three independent half-bridge drivers
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- low-end VCC voltage range of 4.5V - 20V
- output current capability of IO +1.2A/-1.4A
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel low-level effective, controlling low-end LO output
- package form: TSSOP20.
- Three-phase DC brushless motor driver

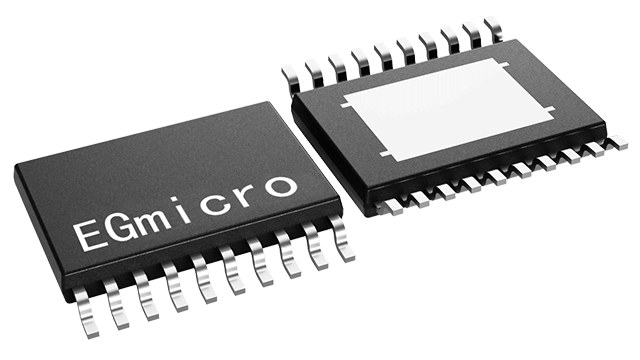

EG2133 is a high cost-effective high-power MOS transistor and IGBT transistor gate drive dedicated chip, which integrates logic signal input processing circuit, dead zone control circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output drive circuit. The high-end working voltage can reach 300V, and the low-end VCC voltage range is 4.5V-20V. It has a locking function and an output current capability of I0+1.2A-1.4A. It is used for three-phase DC brushless motor drivers and is packaged in TSSOP20
