Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
HIN,LIN
Output current (A)
0.6/1.0
Low end power supply undervoltage protection (V)
8.4/7.9
High end power supply undervoltage protection (V)
7.8/7.3
Blocking protection
have
enable
have
Open delay LO-HO
220/220
Extension time LO-HO
200/200
Rise time LO-HO
350/350
Descent time LO-HO
140/140
Dead time (nS)
-
thoroughfare
4
package
SSOP24
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- with two internal comparators
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- undervoltage shutdown output on VCC and VB
- output current capability of IO+/– 0.6A/1.0A
- SD low-level disables HO and LO outputs
- overcurrent protection function, high-level disables HO and LO outputs
- minimal external components

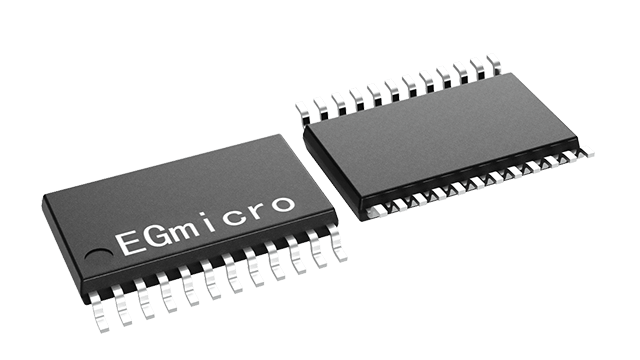

- package form: SSOP24
- lead-free and halogen-free, compliant with ROHS standards.
- Inverter power supply
- Electric vehicle controller
- Brushless motor driver
- Inverter pump controller
- Switching power supply
It is a dedicated full bridge driver chip with two comparator functions, which integrates logic signal input processing circuit, SD control circuit, undervoltage shutdown circuit, lockout circuit, level shift circuit, pulse filtering circuit, and output drive circuit. High end working voltage can reach 600V, low-end VCC power supply voltage range is 10V-20V, low static power consumption, with locking function, output current capability I0+/-0.6A/1.0A, applied in inverter power supply, electric vehicle controller and other fields, using SSOP24 package
