Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
2.8-20
input logic
HIN,LIN
Output current (A)
2.0/2.0
Low end power supply undervoltage protection (V)
not have
High end power supply undervoltage protection (V)
not have
Blocking protection
have
enable
have
Open delay LO-HO
280/250
Extension time LO-HO
100/100
Rise time LO-HO
120/120
Descent time LO-HO
80/100
Dead time (nS)
100
thoroughfare
4

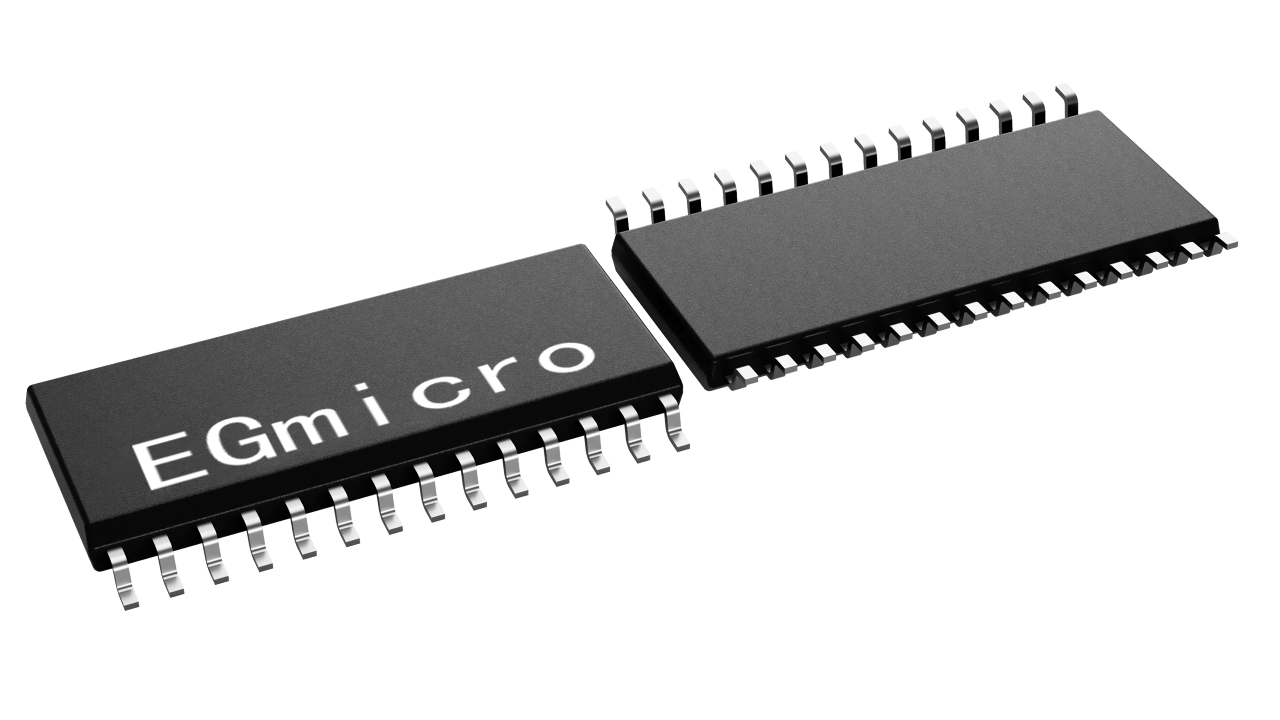

package
SOP28L
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- integrated with two half-bridge drivers
- built-in 5V power supply output
- built-in three-port operational amplifier
- built-in three-port comparators
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- low-end VCC voltage range of 3V - 20V
- output current capability of IO +2.0A/-2.0A
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel high-level effective, controlling low-end LO output
- package form: SOP28L
- lead-free and halogen-free, compliant with ROHS standards.
- Full-bridge topology power supply
- Inverter pump controller
- Electric vehicle controller
- Brushless motor driver
High cost-effective high-power MOS transistor, IGBT transistor gate driver dedicated chip, integrated 5V LDO and other circuits. High end floating bootstrap power supply with a withstand voltage of up to 600V, integrated with two half bridge drivers, suitable for 5V and 3.3V input voltages, maximum frequency of 500KHZ, low-end VCC voltage range of 3V-20V, output current capability of IO+2.0A-2.0A, built-in dead zone control circuit, built-in locking function, suitable for full bridge topology power supply, variable frequency water pump controller, etc., packaged in SOP28L
