Product Details
Drive type
Multiphase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
8-20
input logic
HIN,LIN
Output current (A)
0.8/1.3
Low end power supply undervoltage protection (V)
7/6.8
High end power supply undervoltage protection (V)
6.8/6.5
Blocking protection
have
enable
have
Open delay LO-HO
220/220
Extension time LO-HO
200/200
Rise time LO-HO
350/350
Descent time LO-HO
140/140
Dead time (nS)
-
thoroughfare
4

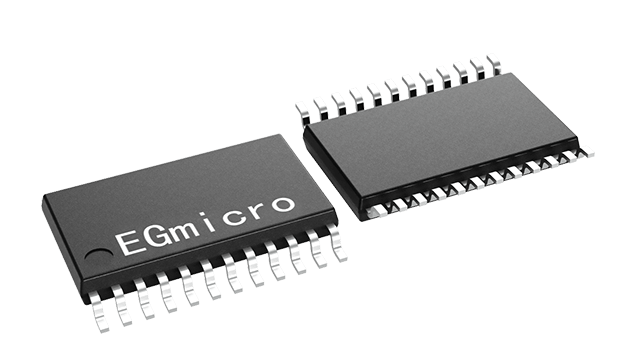

package
SSOP24
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- with two internal comparators
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- undervoltage shutdown output on VCC and VB
- output current capability of IO+/– 0.8A/1.3A
- SD low-level disables HO and LO outputs
- overcurrent protection function, high-level disables HO and LO outputs
- minimal external components
- package form: SSOP24
- lead-free and halogen-free, compliant with ROHS standards.
- Inverter power supply
- Inverter pump controller
- Switching power supply
- Electric vehicle controller
- Brushless motor driver
- High-voltage Class - D power amplifier
A high cost-effective full bridge driver dedicated chip with two comparator functions, integrating various circuits such as logic signal processing. The high-end floating bootstrap power supply has a withstand voltage of up to 600V, suitable for 5V and 3.3V input voltages, with a maximum frequency of 500KHZ. It has undervoltage shutdown output at VCC and VB terminals, with an output current capability of I0+/-0.8A/1.3A. It can also turn off HO and LO outputs at low SD levels and has overcurrent protection function. It is suitable for inverter power supplies, variable frequency water pump controllers, etc. It is packaged in SSOP24
