Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
2.8-20
input logic
HIN,LIN
Output current (A)
2.0/2.0
Low end power supply undervoltage protection (V)
not have
High end power supply undervoltage protection (V)
not have
Blocking protection
have
enable
have
Open delay LO-HO
280/250
Extension time LO-HO
100/200
Rise time LO-HO
120/120
Descent time LO-HO
80/80
Dead time (nS)
100
thoroughfare
2
package
SOW16
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- low-end VCC voltage range of 2.8V - 20V
- output current capability of IO+/– 2A/2A
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel high-level effective, controlling low-end LO output
- minimal external components
- quiescent current less than 5uA, very suitable for battery applications
- package form: SOP16 (wide body).
- Sine wave inverter
- Electric vehicle controller
- Inverter pump controller
- Brushless motor driver
- Square wave inverter
- High-voltage Class - D power amplifier

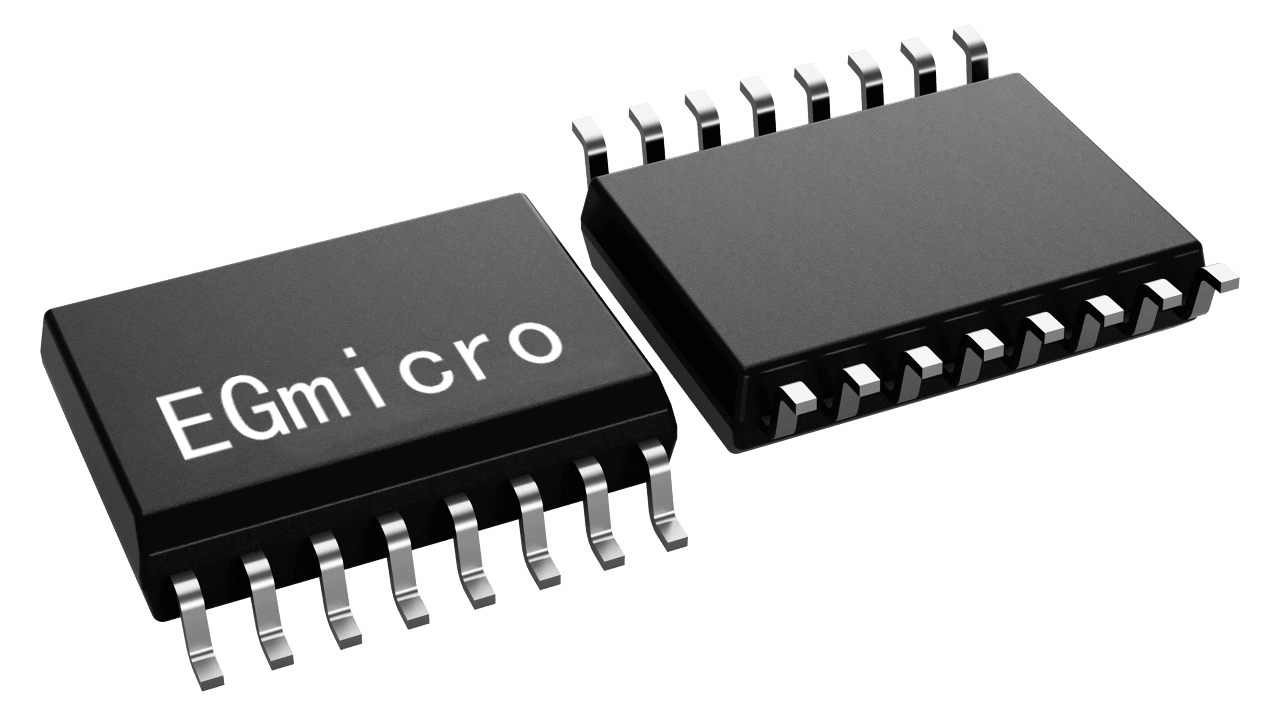

EG2113S is a high-power cost-efficient MOSFET/IGBT driver with dead-time control, interlock, level shifting, and output circuits. For brushless motor controllers, supports 600V high-side and 2.8V-20V Vcc with 5uA standby. HIN/LIN have 200K pull-downs to disable MOSFETs when floating. Output: IO+/-2A/2A in wide-body SOP16.
