Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
HIN,LIN
Output current (A)
2.0/2.0
Low end power supply undervoltage protection (V)
8.6/8.1
High end power supply undervoltage protection (V)
8.6/8.0
Blocking protection
have
enable
have
Open delay LO-HO
350/350
Extension time LO-HO
200/200
Rise time LO-HO
20/20
Descent time LO-HO
15/15
Dead time (nS)
150
thoroughfare
2
package
SOP16/SOW16
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- maximum frequency support of 500KHz
- low-end VCC voltage range of 10V - 20V
- output current capability of IO+/– 2A/2A
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel high-level effective, controlling low-end LO output
- quiescent current less than 50uA
- package form: SOW16 and SOP16
- lead-free and halogen-free, compliant with ROHS standards.
- Sine wave inverter
- Inverter pump controller
- Square wave inverter
- Electric vehicle controller
- Brushless motor driver
- High-voltage Class - D power amplifier

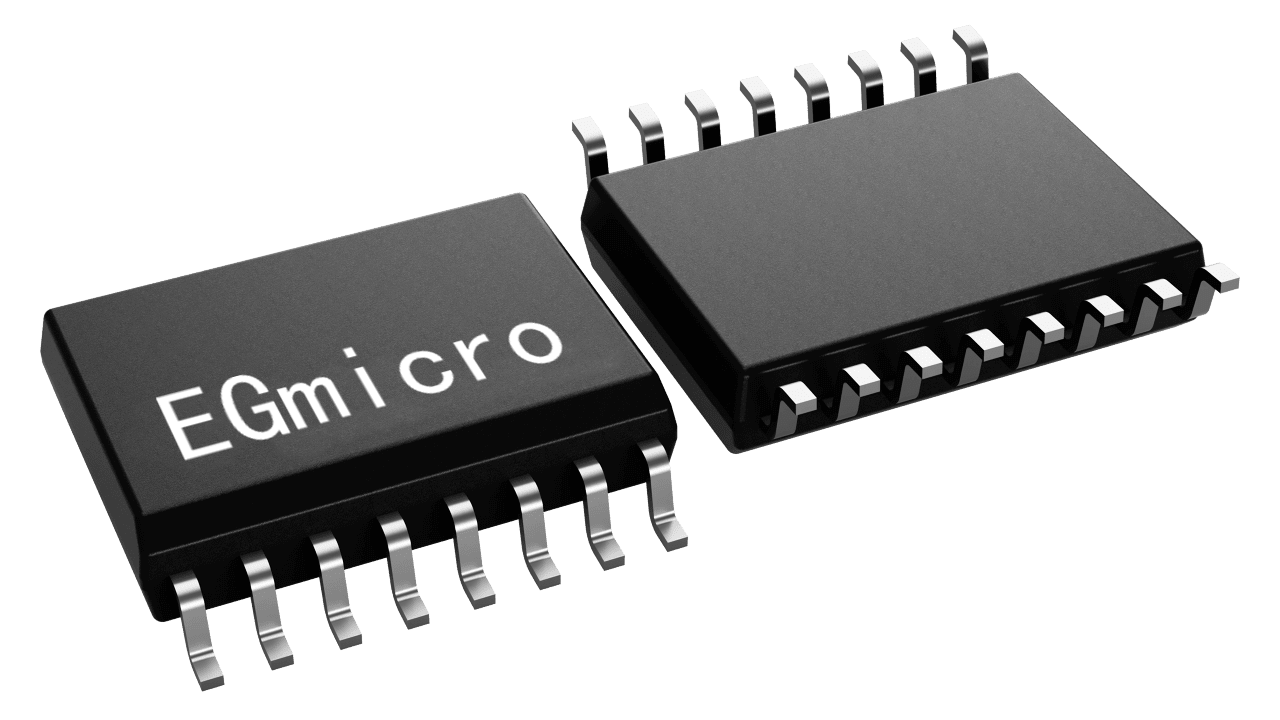

EG2113D is a high-power economical MOSFET/IGBT driver with dead-time control, interlock, level shifting, and output circuits. For brushless motor controllers, handles 600V high-side and 10V-20V Vcc with 50uA standby. HIN/LIN feature 200K pull-downs to turn off MOSFETs when floating. Output: IO+/-2A/2A in SOP16/SOW16.
