Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-25
input logic
HIN,LIN
Output current (A)
0.3/0.6
Low end power supply undervoltage protection (V)
8.5/8.0
High end power supply undervoltage protection (V)
8.5/8.0
Blocking protection
have
enable
not have
Open delay LO-HO
130/130
Extension time LO-HO
100/100
Rise time LO-HO
70/70
Descent time LO-HO
35/35
Dead time (nS)
-
thoroughfare
2
package
SOP8
- High end floating bootstrap power supply design, with a withstand voltage of up to 600V
- Adapt to 5V and 3.3V input voltages
- The highest frequency supports 500KHZ
- VCC and VB power supply with undervoltage protection
- Low end VCC voltage range 10V-25V
- Output current capability IO+/-0.3A/0.6A
- The high level of the HIN input channel is effective, controlling the high-end HO output
- LIN input channel high level is effective, controlling the low-end LO output
- Few peripheral components
- Packaging form: SOP8
- Lead free and halogen-free comply with ROHS standards.
- Hair dryer
- Wireless charging driver frequency conversion water pump controller
- DC-DC power supply
- Brushless motor driver.

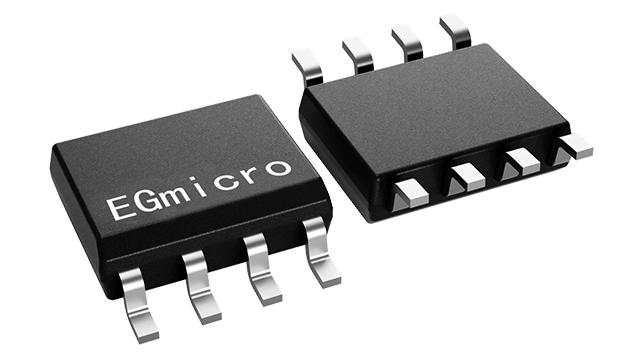

EG2101D is a cost-effective MOSFET/IGBT gate driver integrating logic processing, UVLO, level shifting, pulse filtering and output driving circuits, designed for brushless motor controllers and DC-DC power supplies.
