Product Details
starting voltage
14V
turn off voltage
9V
starting current
18uA
static current
2.3mA
switching frequency
Jitter frequency peripheral can be set
drive current
-
output power
medium power

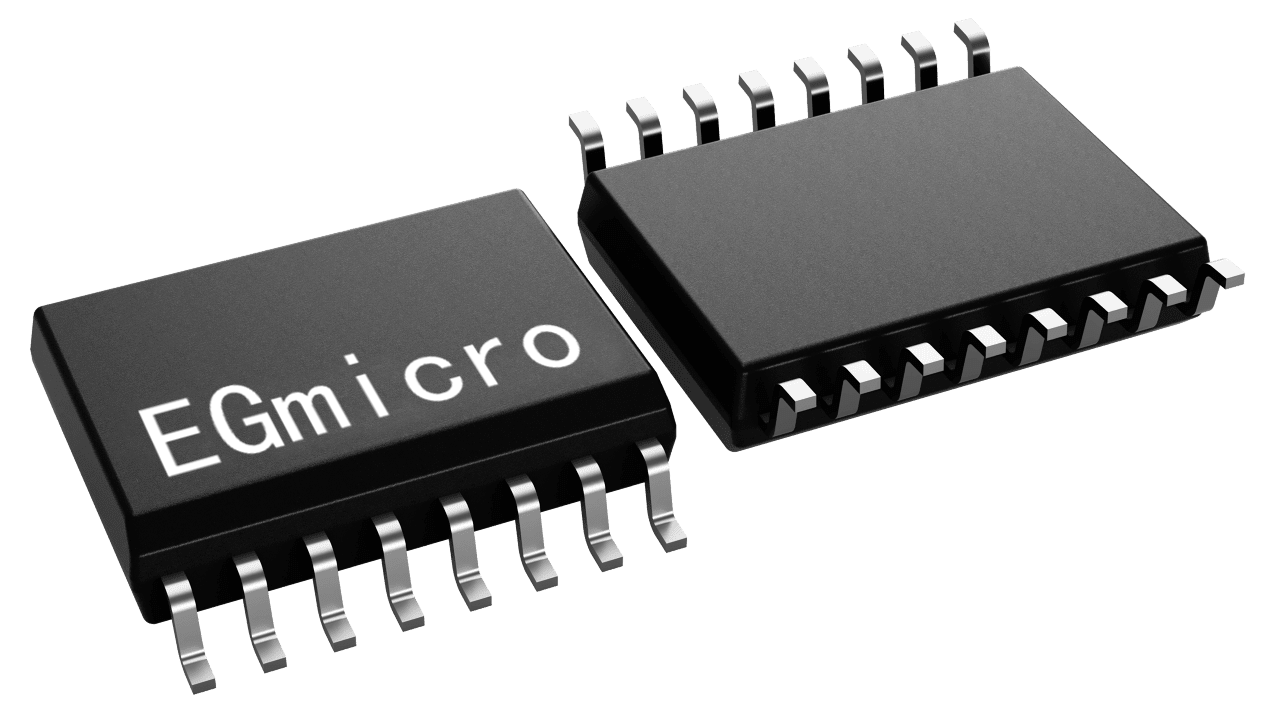

package
SOP16
- Integrated 600V half bridge driver
- Bus input undervoltage protection
- Excellent EMI characteristics
- Few peripheral components
- External soft start
- VIN undervoltage protection
- Optocoupler open circuit protection
- Maximum duty cycle of 49%
- Current mode control
- External resistors can be set with PWM frequency, up to 500KHZ
- Periodic current limitation
- HO, LO output current capability IO+/-0.8A/1A
- Built in cutting-edge blanking
- Low starting current
- Packaging form SOP16
- LED screen
- Lithium battery charger
- Lead acid battery charger
- Adapter
- Motor drive power supply
EG12525 是一款高性价比集成 600V 半桥驱动电流模式 PWM 控制器，适合中、大功率双管正激及双管反激电源方案。内置抖频功能，有优良的 EMI 特性。具备完备保护功能，包括 VIN 欠压保护（UVLO）、母线欠压保护、逐周期电流限制、过载保护、软启动等。
