Product Details
starting voltage
-
turn off voltage
-
starting current
Built-in quick start
Input voltage range
10-120V
switching frequency
110KHz
output voltage accuracy
3%
Built in power transistor
have

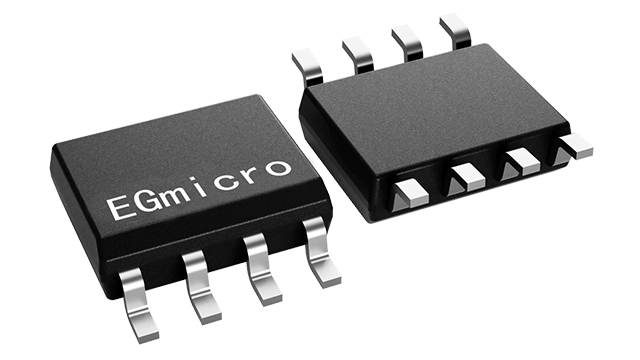

package
ESOP8
- Zero power consumption is achieved by turning off the enable pin
- Wide voltage input range from 10V to 120V
- Maximum output current 1.5A
- Integrated power MOS transistor
- Few peripheral components
- Output short circuit protection
- Temperature protection
- Cycle by cycle current limiting
- Flexible and reliable output voltage
- ESOP8
- Twisting car controller
- Instrument power supply
- Fast charging power supply
- Electric vehicle controller
- Inverter system
- Industrial control system
- Balance car controller
It is a wide voltage range step-down DC-DC power management chip that integrates enabling switch control, reference power supply, error amplifier, overheat protection, current limiting protection, short circuit protection, and other functions, suitable for wide voltage input step-down use. Equipped with zero power enable control function, it can save peripheral devices and is suitable for battery applications, with high cost-effectiveness
