Product Details

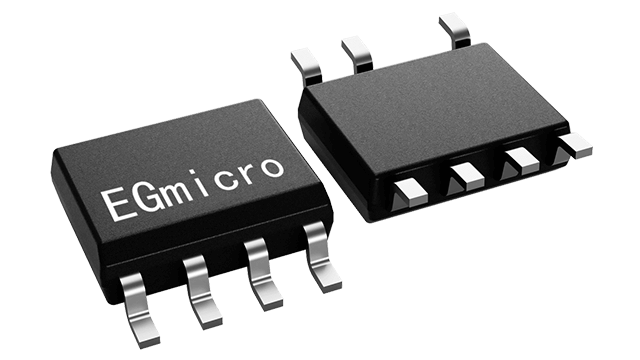

/EG11732.png)
starting voltage
9.5V
turn off voltage
7.8V
starting current
200uA
Input voltage range
11-30V
switching frequency
0-300k,外围可设置
output volt-age accuracy
1.5%
Built in power transistor
have
package
QFN32
- Input voltage range 10V to 30V
- Built in 30V 80A power transistor
- High efficiency synchronous rectification scheme, capable of continuous 15A current
- Adjustable dead zone
- Adjustable frequency
- Output short circuit locking protection
- Enable control functions
- Built in temperature protection
- Cycle by cycle current limiting
- Flexible and adjustable output voltage
- Few peripheral components
- QFN32
- PD and other fast charging power supplies
- PC power supply
- Non isolated DC-DC
- Inverter system
- Industrial control system
It is a wide voltage range step-down synchronous rectification DC-DC power management chip, which integrates 30V 80A power transistor, enable switch control, reference power supply, error amplifier, overheating protection, current limiting protection, short circuit protection and other functions. It is very suitable for high current and small volume step-down output. EG11732 comes with enable control, which can easily turn off the delay function and has a high cost-effectiveness.
