Product Details
starting voltage
16.5V
turn off voltage
8V
starting current
200uA
static current
2mA
switching frequency
Peripheral capacitors can be set
drive current
2A
output power
-

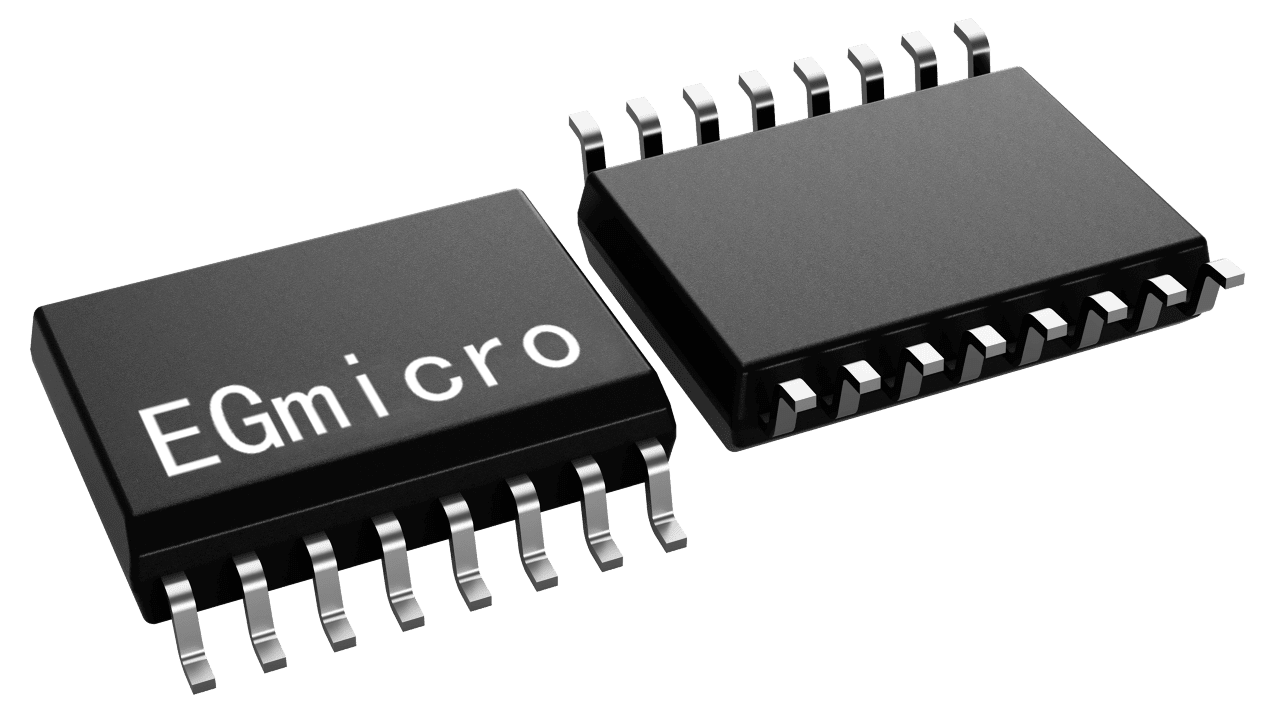

package
SOP16
- Dual tube forward dedicated power chip
- An external capacitor can be connected to set the operating frequency (0-300KHz)
- Built in 5V reference voltage
- UVLO undervoltage locking function, with a turn-on voltage of 16.5V at the VCC pin and a turn off voltage of 8V at the VCC pin
- Weekly flow restriction control
- Active synchronous rectification control
- Built in soft start circuit
- Integrated 600V half bridge driver, capable of directly driving MOS transistors
- Packaging form: SOP16
- Industrial power supply
- LED screen
- Battery charger
- Industrial control system
- Telecommunications power supply system
- Isolation DC-DC
- Inverter power supply
It is a dual tube forward power management chip with integrated 600V half bridge drive, which includes reference power supply, oscillator, error amplifier, current limiting protection, short circuit protection, half bridge drive, active synchronous rectification and other functions. It is very suitable for high voltage and high current applications
