Product Details
Drive type
Single - Phase Half - Bridge
Suspended power supply (V)
600
Low end power supply (V)
10-20
input logic
HIN,LIN
Output current (A)
2.0/2.5
Low end power supply undervoltage protection (V)
8.5/7.9
High end power supply undervoltage protection (V)
8.2/7.5
Blocking protection
have
enable
not have
Open delay LO-HO
280/300
Extension time LO-HO
150/170
Rise time LO-HO
120/120
Descent time LO-HO
80/100
Dead time (nS)
160
thoroughfare
2
package
SOP16
- High-end floating bootstrap power supply design, with a withstand voltage of up to 600V
- compatible with 5V and 3.3V input voltages
- maximum frequency support of 500KHz
- low-end VCC voltage range of 10V - 20V
- output current capability of IO+/– 2A/2.5A
- peak current protection for high-side MOSFET on a per-cycle basis
- peak current protection for low-side MOSFET on a per-cycle basis
- built-in dead-time control circuit
- built-in latch function, completely eliminating simultaneous conduction of upper and lower tube outputs
- HIN input channel high-level effective, controlling high-end HO output
- LIN input channel high-level effective, controlling low-end LO output
- undervoltage protection for low-end power supply VCC
- undervoltage protection for high-end power supply VB
- package form: SOP16.
- Sine wave inverter
- Solar controller
- Industrial control system
- Digital generator
- Brushless motor driver
- High-voltage Class - D power amplifier

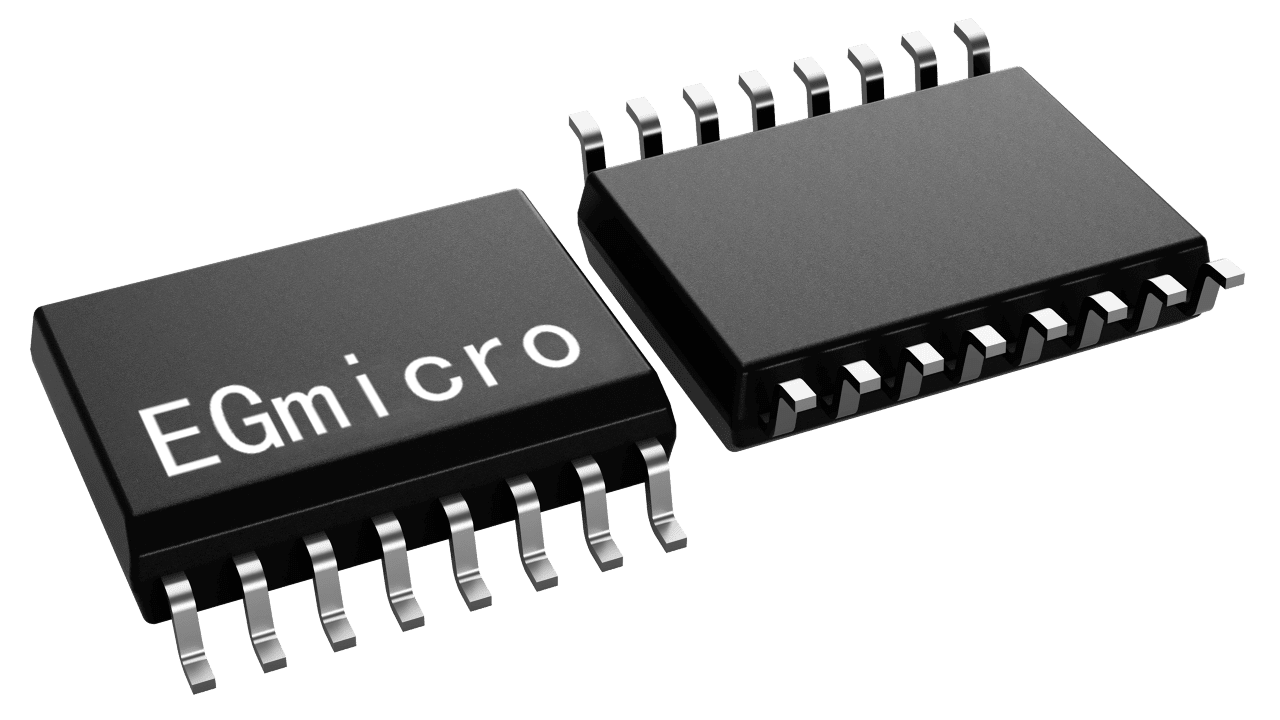

EG1160 is a versatile cost-effective half-bridge driver with 5V LDO. Handles 600V high-side, 10V-20V Vcc, and <1.5mA standby current. Features pull-down inputs, interlock against cross-conduction, and 2A/2.5A output for power/motor applications in SOP16.
